RIDGE
Up and Down Pendant Light

Ridge is a pendant with a clear vertical form factor with both uplight and downlight. It accommodates a variety of combinations and can be scaled in almost any direction. This pendant can be used for primary lighting or arranged as a cluster.

Capturing the essence of the varied edges of natural promontories brought about the exquisite angles of the Ridge pendant. Make a bold design statement by clustering a group of these luminaires together. As with the other pendants in the Terra Collection, the Ridge offers the perfect amount of mild indirect uplight, and useful downlight.

  • Clean vertical form factor with both up and down light

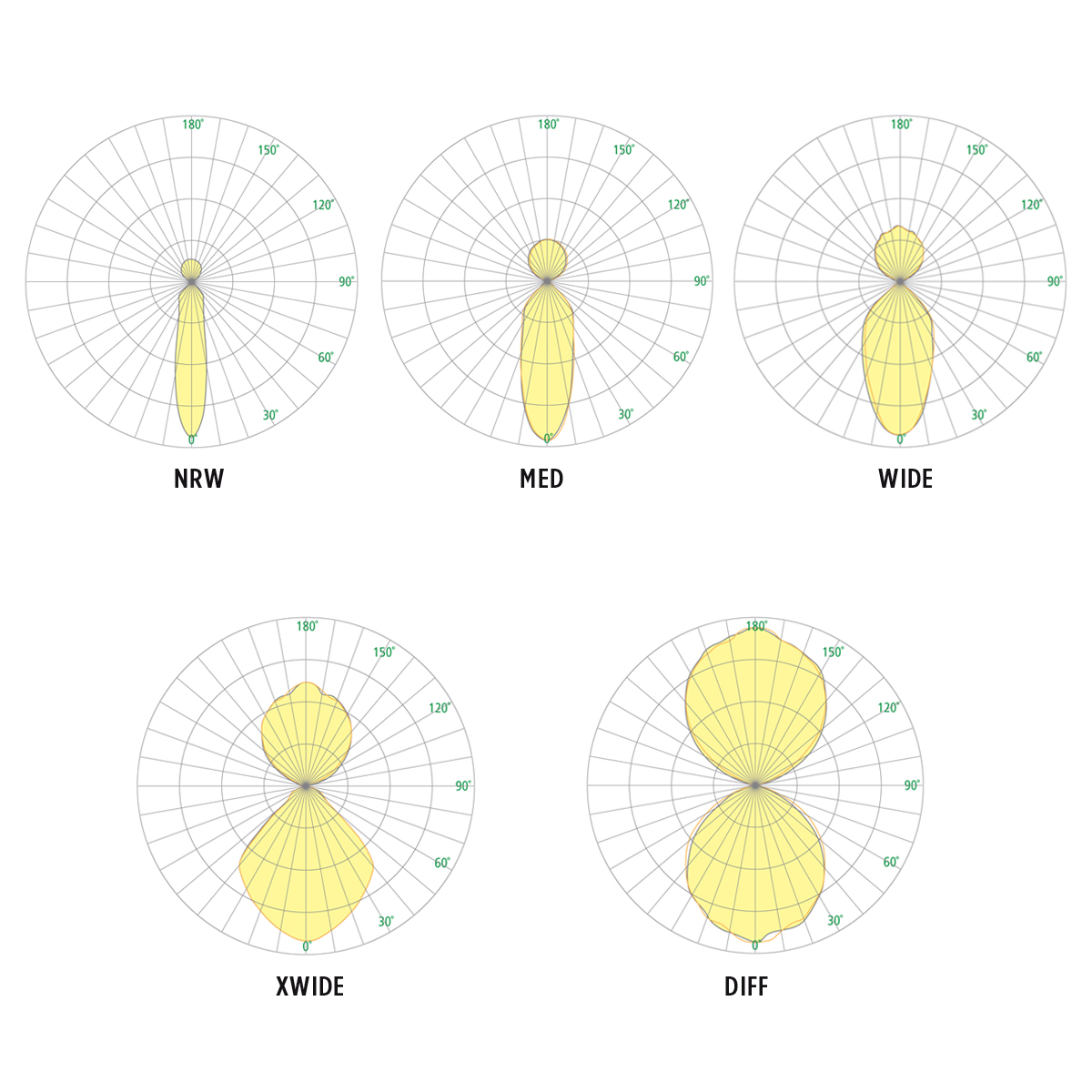

  • 5 optical control options for downlight
  • High or low lumen output options
  • Remote Driver (RMD) or Driver in Canopy (SDC) configurations available
  • Optional 90+ CRI (2700K sources are 90+ CRI standard)
  • Remote Driver (RMD) includes round canopy 5-1/4” diameter and 1/2” deep
  • Driver in canopy (SDC) includes round canopy 6-3/8” diameter and 1-1/2” deep
  • Suspended by two slim black, white, or grey braided cloth-covered single conductor power cords
  • Aluminum construction
  • Outer panel and inner component finishes selected separately
  • Canopy is painted white
  • Canopy can be rotated to align pendants and/or oriented within a space
  • BAA (Buy American Act) and BABA (Build American, Buy America) compliant
MODELS:
Painted
Velvet Black
Deoro Gold
Agate Grey
Alpine Green
Baja Beige
Cove Blue
Glacier White
Harbor Grey
Jet Black
Ocean Blue
Sagebrush Green
Shoreline Grey
Slate Grey
Sierra Taupe
Terracotta Canyon
Traffic White
Vineyard Red
Blade Silver
Graphite Silver
Bronze
Bronze Matte
  • Longer/shorter pendant body
  • No uplight or no downlight
  • Optics for uplight (std as diffuse up)
  • Cluster from one canopy
  • Dual circuit for separate up/down switching
Where to Buy? Contact a Sales Representative or Request a Quote

Product Specifications & Documents

Ridge up down pendant part of the Terra collection
Null Null

CP7200

18", Ridge

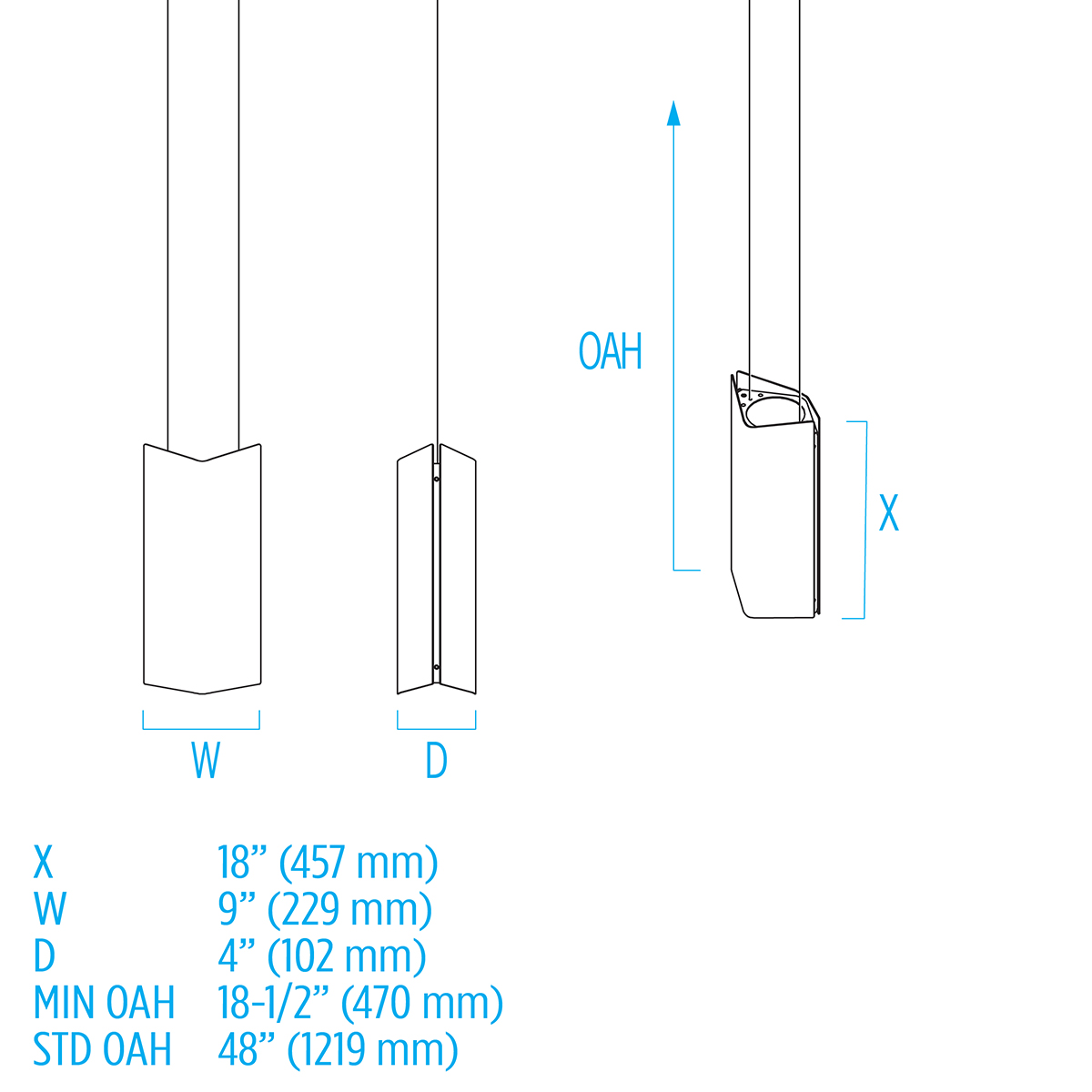

  • H
  • W
  • D
  • OAH
  • 18” (457 mm)
  • 9” (229 mm)
  • 4” (102 mm)
  • 48” (1219 mm)
  • CCT
  • 2700K
    3000K
    3500K
    4000K
  • Lumens
  • Total:
    L: 905-995
    H: 1555-1705
  • Watts
  • L: 8
    H: 13
  • Driver
  • Remote
    In canopy
  • Control
  • 0-10V dimmable to 1%
  • Listings
  • BAA
zoom Visa Lighting's standard paint finish colors

OVER 440 PAINT COLOR COMBINATIONS

Easily get a customized look with these standard products. These up/down pendant lights pack a large visual punch with over 440 paint color combinations available.

View our standard paint colors
