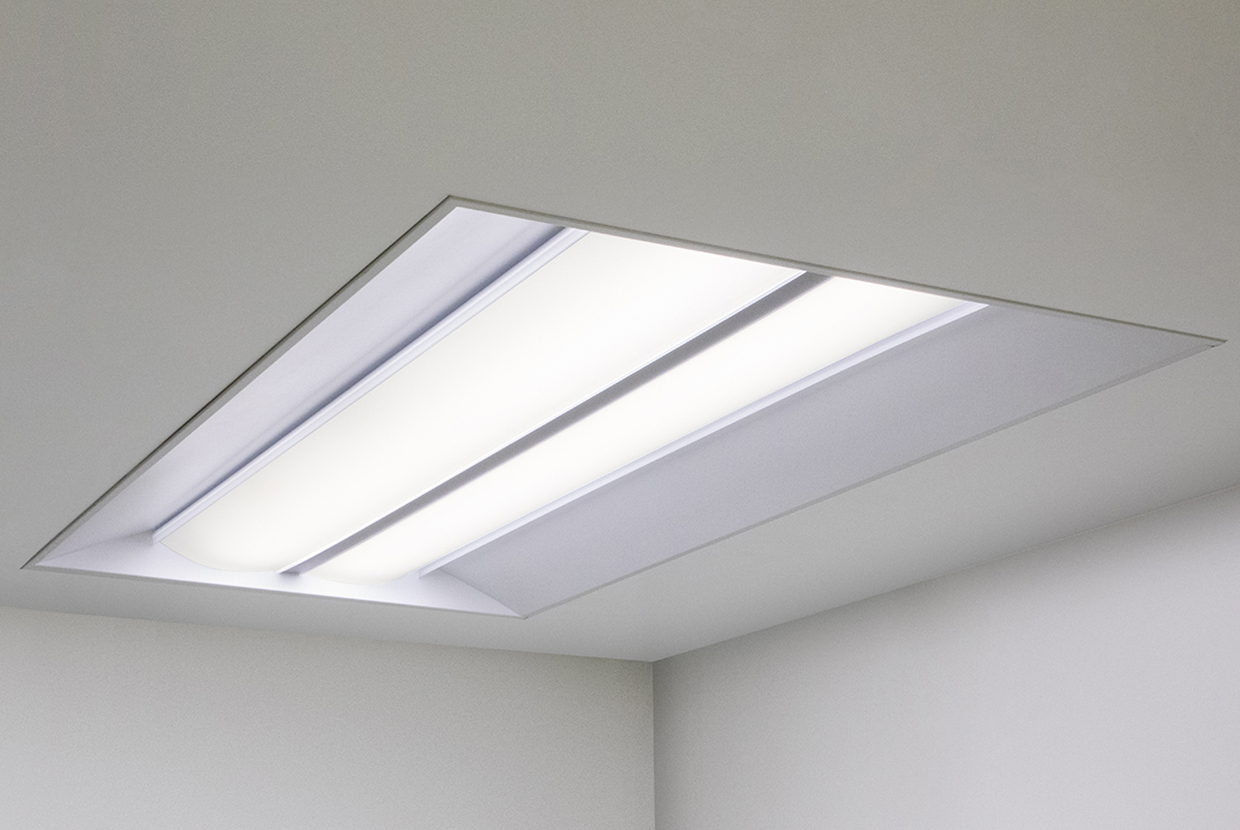

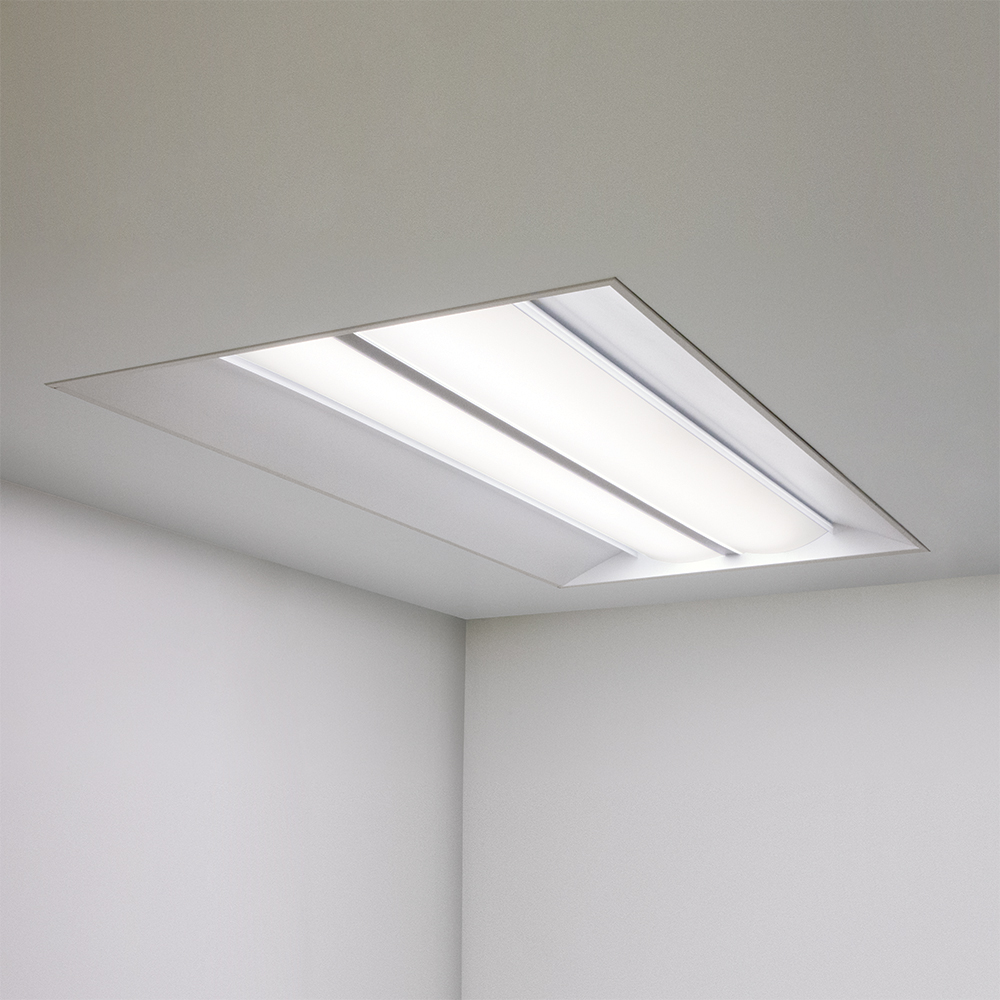

JASPER
Patient Room Overbed
Jasper’s overbed is a low cost alternative for patient and exam room lighting. This simple multifunctional troffer features multiple lumen levels, an optional amber night light, and a 3” recessed depth for use in busy plenums or retrofit projects.
- Integral driver
- Nightlight mode option
- Optional 90+ CRI output
- Separate circuits for ambient and exam functions
- ETL listed for damp locations
MODELS:
CM2094
2'x4', Overbed
Spec Sheet Install IES
The Jasper troffer lights can be finished in our Non-VOC powder coat colors or our exclusive eco-friendly alternative metal finishes. It is also available in our Brushed Aluminum premium metal finish.
Painted
Alternative Metal
Premium Metal
- Custom colors
Product Specifications & Documents
CM2094
2'x4', Overbed
- L
- W
- RD
- 23-3/4” (603 mm)
- 47-3/4” (1213 mm)
- 3" (76 mm)
- CCT
- 3000K
3500K
4000K
- Lumens
- 3300-3400 (amb)
7900-8300 (exam)
11100-11700 (cmb)
- Watts
- 30 (amb)
81 (exam)
111 (cmb)
- Driver
- Integral
- Control
- 0-10V to 1%
DALI
- Listings
- Damp
Overbed Troffer for Healthcare Environments
JASPER 2x4 Overbed Model
This recessed architectural troffer for 2x4 ceiling spaces offers multiple source, control, mounting, and trim options. The 2x4 overbed model is a low cost alternative for patient and exam room lighting. It has separate circuits for ambient and exam functions.
The Jasper 2x4 patient room overbed troffer has an amber night light option for minimizing patient disturbances during night check-ins. Jasper is also available with color tuning sources for circadian rhythm support.
View the Jasper Family
