JASPER
General Use Ceiling Troffers

This recessed architectural troffer for 2x2 or 2x4 ceiling spaces offers multiple source, control, mounting, and trim options. Tunable sources offer circadian lighting support within Jasper's simple and discrete housing.

  • Integral driver
  • Multiple levels of lumen output
  • Integral T-bar retaining clips
  • Trim bar can be painted in any of our standard paint colors
MODELS:

The Jasper troffer lights can be finished in our Non-VOC powder coat colors or our exclusive eco-friendly alternative metal finishes. It is also available in our Brushed Aluminum premium metal finish.

Painted
Velvet Black
Deoro Gold
Agate Grey
Alpine Green
Baja Beige
Cove Blue
Glacier White
Harbor Grey
Jet Black
Ocean Blue
Sagebrush Green
Shoreline Grey
Slate Grey
Sierra Taupe
Terracotta Canyon
Traffic White
Vineyard Red
Blade Silver
Graphite Silver
Bronze
Bronze Matte
Alternative Metal
Brushed Chrome Alternative
Satin Nickel Alternative
Brushed Brass Alternative
Brushed Bronze Alternative
Pewter Alternative
Oil-Rubbed Bronze Alternative
Rustic Brass Alternative
Brushed Copper Alternative
Premium Metal
Brushed Aluminum
  • Custom colors
Where to Buy? Contact a Sales Representative or Request a Quote

Product Specifications & Documents

A 2x2 tunable, architectural troffer
NULL NULL

CM2082-T

2' x 2', Tunable

  • L
  • W
  • RD
  • 23-4/5" (605 mm)
  • 23-3/4” (603 mm)
  • 3" (76 mm)
  • CCT
  • 2700K-5000K
  • Lumens
  • L: 2300
    H: 3000
    VH: 3700
  • Watts
  • L: 21
    H: 26
    VH: 33
  • Driver
  • Integral
  • Control
  • 0-10V to 10%
  • Listings
  • Damp
A 2x2 architectural troffer
NULL NULL

CM2082-W

2' x 2'

  • L
  • W
  • RD
  • 23-3/4” (603 mm)
  • 23-3/4” (603 mm)
  • 3" (76 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • VL: 2200-2300
    L: 3300-3400
    H: 4300-4500
    VH: 5200-5300
  • Watts
  • VL: 17
    L: 26
    H: 35
    VH: 45
  • Driver
  • Integral
    IEM
  • Control
  • 0-10V to 1%
    DALI
  • Listings
  • Damp
A 2x4 tunable, architectural troffer
NULL NULL

CM2084-T

2' x 4',Tunable

  • L
  • W
  • RD
  • 23-3/4” (603 mm)
  • 47-3/4” (1213 mm)
  • 3" (76 mm)
  • CCT
  • 2700K-5000K
  • Lumens
  • L: 1950
    H: 3800
    VH: 5800
  • Watts
  • L: 16
    H: 33
    VH: 50
  • Driver
  • Integral
  • Control
  • 0-10V to 10%
  • Listings
  • Damp
A 2x4 architectural troffer
NULL NULL

CM2084-W

2' x 4'

  • L
  • W
  • RD
  • 23-3/4” (603 mm)
  • 47-3/4” (1213 mm)
  • 3" (76 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • VL: 2200-2300
    L: 4400-4600
    H: 6000-6300
    VH: 7900-8300
  • Watts
  • VL: 15
    L: 31
    H: 47
    VH: 63
  • Driver
  • Integral
    IEM
  • Control
  • 0-10V to 1%
    DALI
  • Listings
  • Damp
zoom

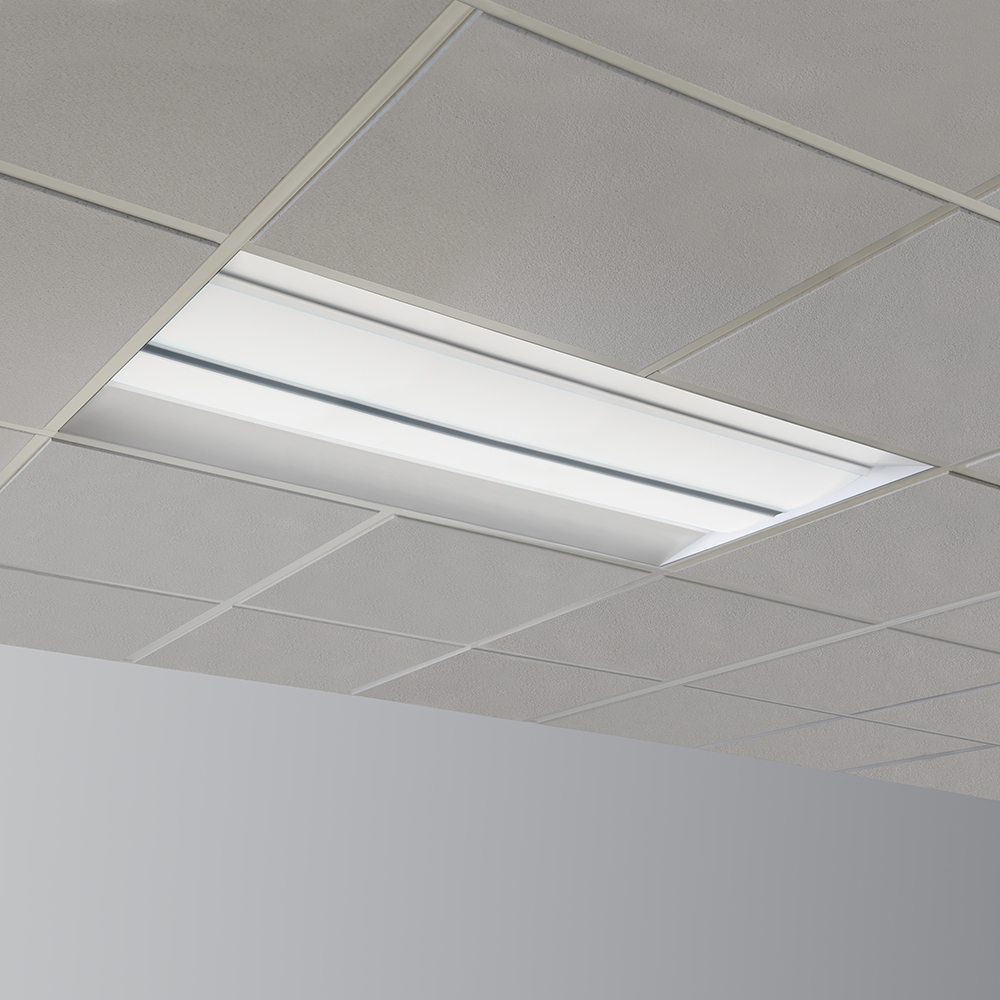

Simple Ceiling Troffer with Upgraded LED Source Options

Discrete Housing with High Quality Light Output

Jasper's low plenum depth enables use in “busy” recessed plenums or retrofit projects. This simple ceiling troffer easily mounts to standard 15/16”, 9/16”, or screw-slot grid ceiling systems and has integral T-bar retaining clips.

This simple and discrete ceiling troffer's center trim bar can be painted in any of our standard paint finishes.

View the Jasper family
zoom Hospital 2x4 ceiling troffer with tunable light for patient circadian lighting

Troffer with Tunable LED Light Output

Tune the Color Temperature

Shift the color temperature in this simple ceiling troffer to optimize CCT according to the environment or the time of day. Align light output with circadian rhythm to better match the gradual dimming effect humans experience underneath the sun. Pair with non-tunable models within a space for a cohesive lighting design.

Learn more about circadian lighting
