LIBERTY — AVAILABLE Q2, 2024
Behavioral Health/High Abuse Momentary Switches

These high abuse momentary switch assemblies are available in single-, dual-, and triple-gang models and compliment Visa Lighting behavioral health/high abuse lighting products. The face plate is machined from aluminum plate. Liberty can be used where switches are vulnerable to damage in high abuse and behavioral health applications. These low voltage switches are meant to pair with our LVPC-DIM controller.

  • Room-side sealed & high abuse resistant construction
  • Stainless steel switch body and actuator
  • Momentary switch function (normally OFF)
  • Switches rated for max 0.1A, 24VDC
  • Can be combined with LVPC-DIM accessory to control multiple zones with optional lockout & override functions
  • Class 2 circuits only
  • Switches recessed into wall plates for enhanced resistance to tampering Installs into single-, dual-, or three-gang recessed switch boxes (by others) using provided screws
  • Fastener heads finished to match plates
  • IP65 rated
  • IK10+ impact resistant
  • Single piece machined aluminum wall plate
  • Tamper resistant hardware
MODELS:

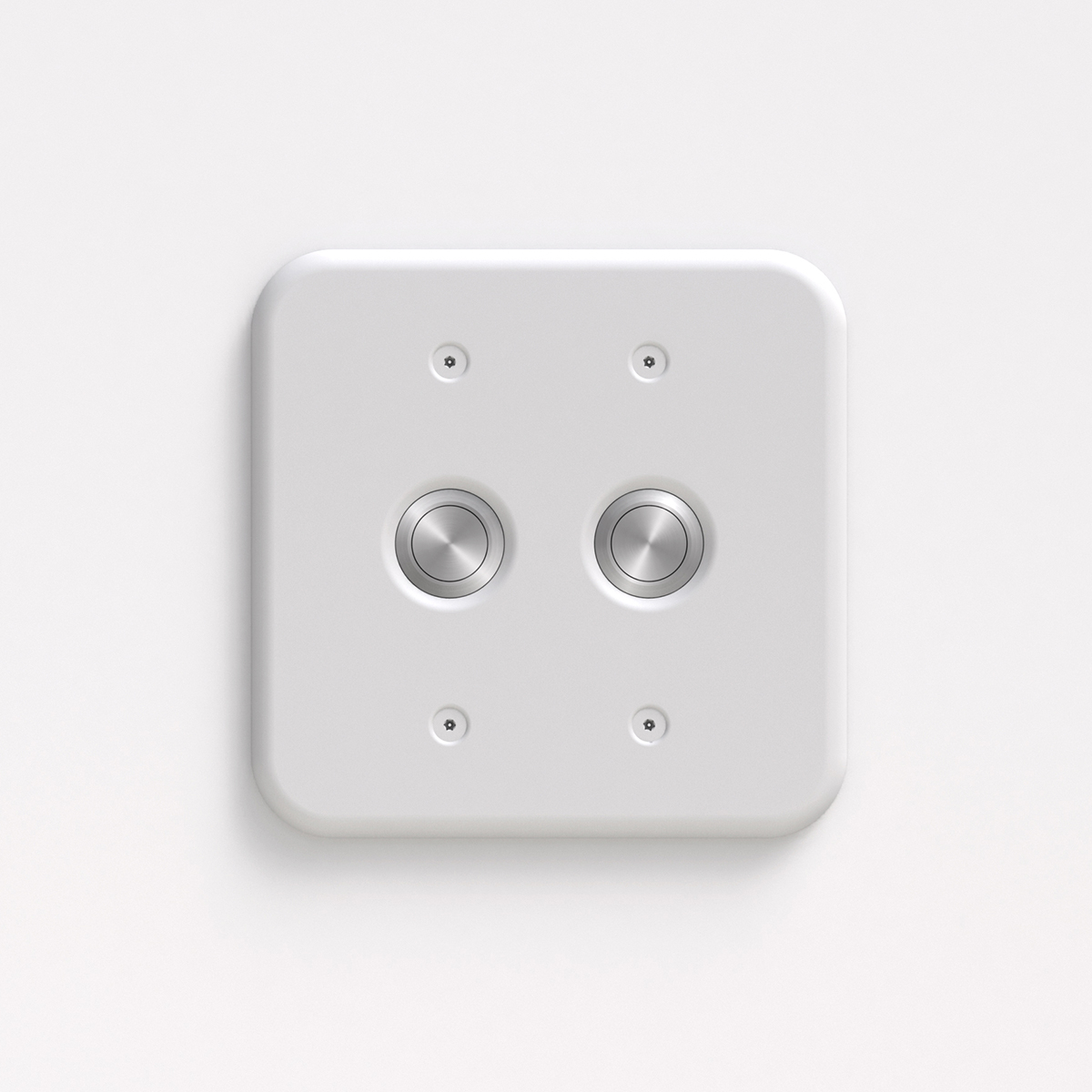

  • CT7070 Dual-gang

    Dual-gang Wall Switch

    Spec Sheet
  • CT7070 Single-gang

    Single-gang Wall Switch

    Spec Sheet

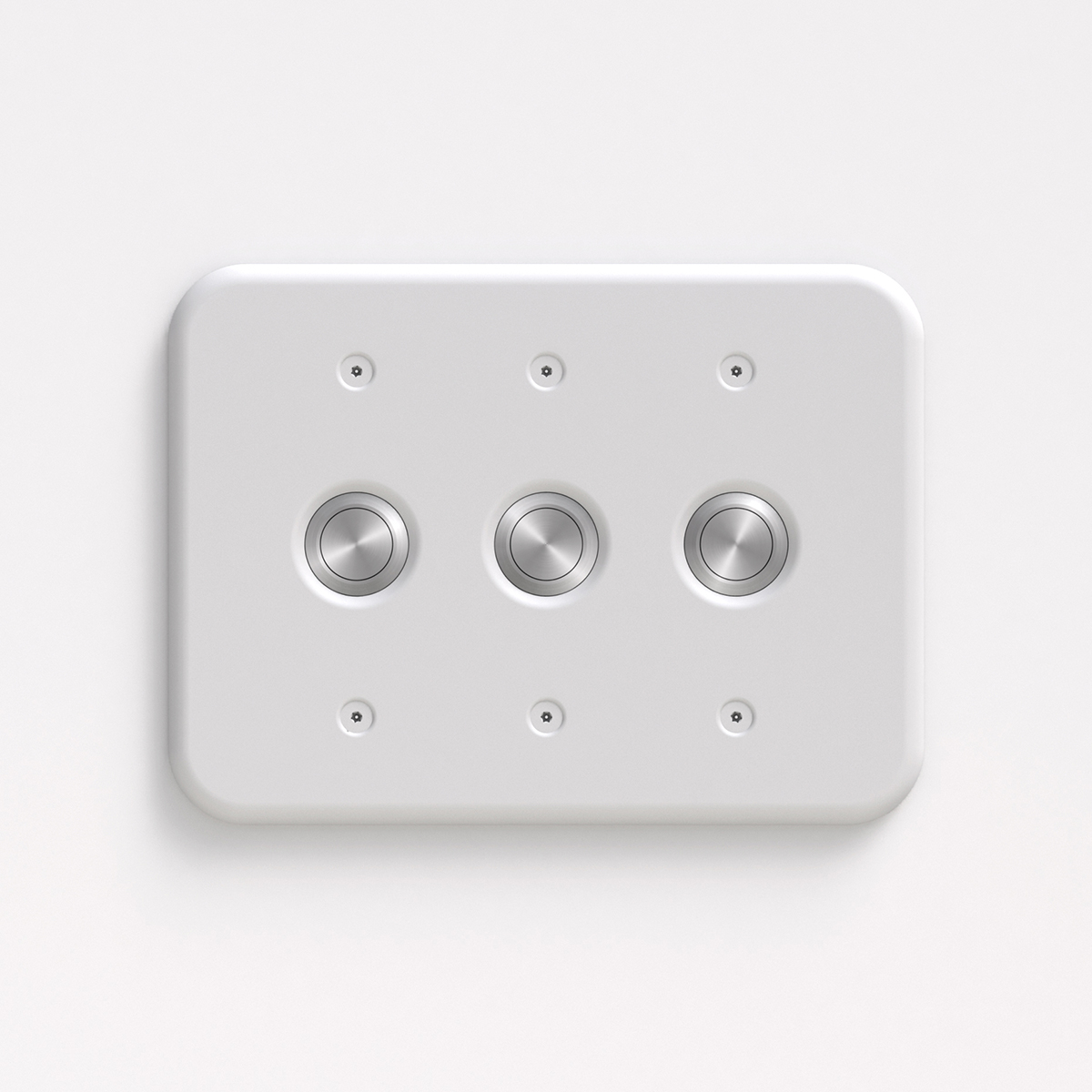

  • CT7070 Triple-gang

    Dual-gang Wall Switch

    Spec Sheet
Painted
Velvet Black
Deoro Gold
Agate Grey
Alpine Green
Baja Beige
Cove Blue
Glacier White
Harbor Grey
Jet Black
Ocean Blue
Sagebrush Green
Shoreline Grey
Slate Grey
Sierra Taupe
Terracotta Canyon
Traffic White
Vineyard Red
Blade Silver
Graphite Silver
Bronze
Bronze Matte
  • Alternate switch color
  • Illuminated switch rings
  • Custom machining on plates (icons, text, etc.)

Product Specifications & Documents

CT7070 Dual-gang

Dual-gang Wall Switch

  • H
  • W
  • D
  • 5-3/8” (137 mm)
  • 5-7/16” (138 mm)
  • 0.25” (6 mm)

CT7070 Single-gang

Single-gang Wall Switch

  • H
  • W
  • D
  • 5-3/8” (137 mm)
  • 3-5/8” (92 mm)
  • 0.25” (6 mm)

CT7070 Triple-gang

Dual-gang Wall Switch

  • H
  • W
  • D
  • 5-3/8” (137 mm)
  • 7-1/4” (184 mm)
  • 0.25” (6 mm)

LIBERTY Momentary Switches

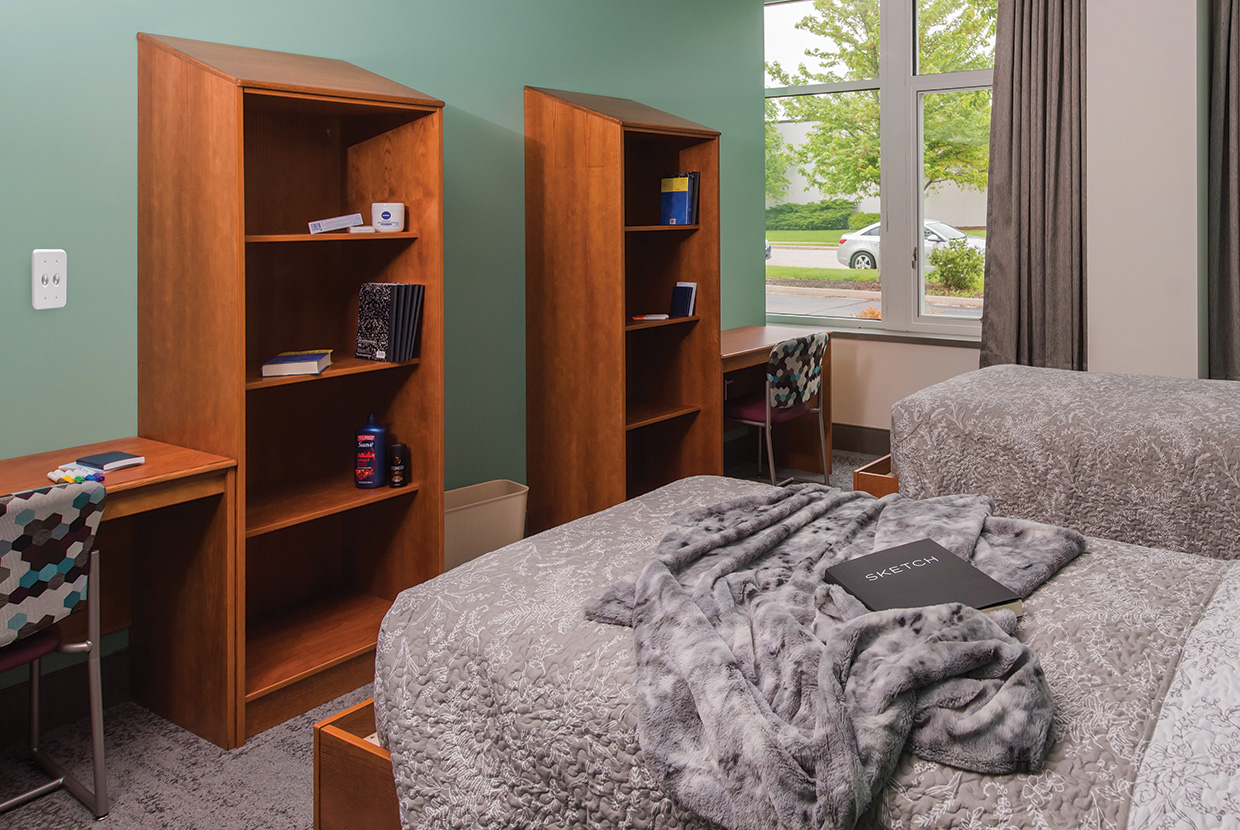

  • CB7070-Momentary-Switch-RogersBehavioralHealth

    Rogers Behavioral Health

  • Nationwide momentary switch

    Nationwide Children's Hospital
