Recessed Multi-Function Overbed Lighting

Lighting in HARMONY with Comfort and Well-being Designed to Improve the Patient Experience

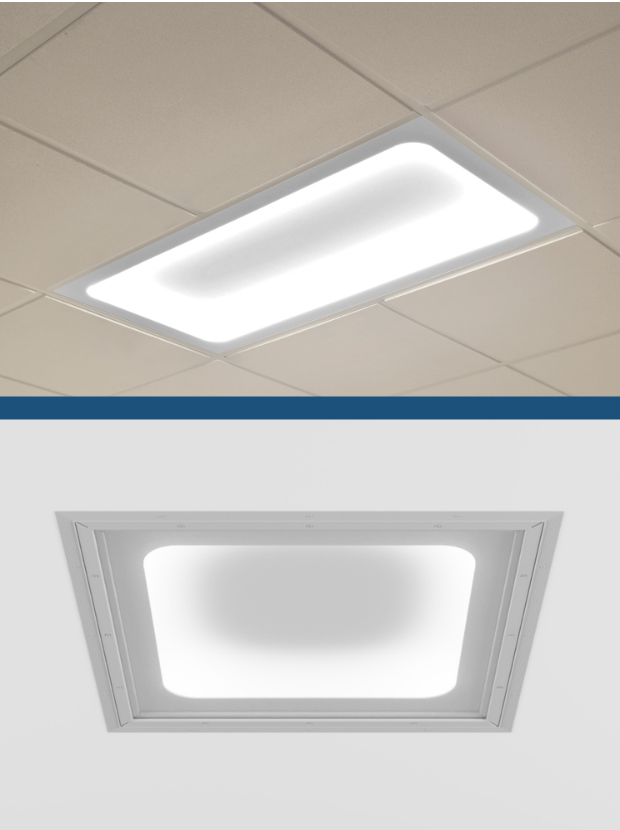

The Harmony 2x4 overbed light features a unique cove-like curved lens design. This recessed ceiling fixture distributes light inward from the perimeter of the concave lens. This unique design creates a comfortable gradient of light that provides healthcare patients and staff with soft, calming, ambient illumination.

Product Details

Designed for Patient Comfort and Caregiver Efficiency

Features That Allow Healthcare Workers The Opportunity To Give Optimal Care

Optimize patient room design with this streamlined overbed light. The Harmony 2x4 features multiple light modes for patient comfort and caregiver efficiency including soft ambient lighting, higher intensity reading illumination, and directional exam lighting.

Product Details
HARMONY 2x4 Video
HARMONY 2x4 Video

HARMONY 2x4 Video

Product Features:

  • 3000K, 3500K, or 4000K CCT
  • 2-Circuit (2C) features separate ambient and reading modes which combine to enable IES-RP29 compliant exam lighting
  • High output exam available with 3-Circuit (3C) option
  • Low output Amber LED (NGT) option
  • Long lasting LEDs allow for maintenance-free sealed housing construction
  • Shallow recessed housing

Care for Patients in the Best Possible Light

  • Easy Cleaning

    Harmony healthcare lighting features smooth surfaces which allow for easy cleaning. Our products are made in America with durable materials and finishes that stand up to harsh cleaning protocols.

  • Sealed Construction

    NSF2 certifiation assures cleanability. IP65 (Ingress Protection) seals against dust and water from room side. It is suitable for a restrictive airflow sealed fixture for an airtight room.

  • Antimicrobial Finish

    Harmony products use an antimicrobial powder coat paint that contains silver ion as a natural antibacterial agent. This specialized paint inhibits the growth of bacteria and some viruses.

Flexible Positioning of LED Drivers for Easy Facility Maintenance

To allow medical facilities and installation contractors the flexibility to mount the LED driver compartment in a location that best suits their needs while integrating seamlessly in the overall design, Harmony features two options for driver placement.

Top Mounted Driver Option

When to Use HARMONY 2x4 with Top Mounted Driver:

If corridor plenums are overcrowded, the driver can be mounted within the patient room ceiling utilizing the slim Top Mounted Driver option (TMD).

  • Ideal for grid mounted rooms with access to plenum
  • Easily wired through top of fixture
  • Quick access to driver replacement through adjacent ceiling panels minimizes maintenance, clean time, and related costs
  • No need to remove entire fixture for access

Remote Driver Option

When to Use HARMONY 2x4 with Remote Driver:

With the remote driver option (RMD) and low voltage wiring, the slim driver compartment can be mounted in remote locations like corridors, data/wiring closets, or within the patient room plenum.

  • Ideal for sheetrock ceiling applications where driver maintenance can be performed easily
  • Allows easy access and service without disturbing the patient space, saving costs on clean up and down time
  • Low voltage class II wiring from driver box to fixture
