CELEST SQ
Large Venue and Acoustic Lights
Celest SQ's simple square shape can be used to create a bold geometric statement with a bright color choice, or it can blend seamlessly into a large architectural space with a neutral color choice. Either way, Celest SQ will reduce unwanted noise with special acoustic panels.
- Offered in two sizes : 26" or 48" heights

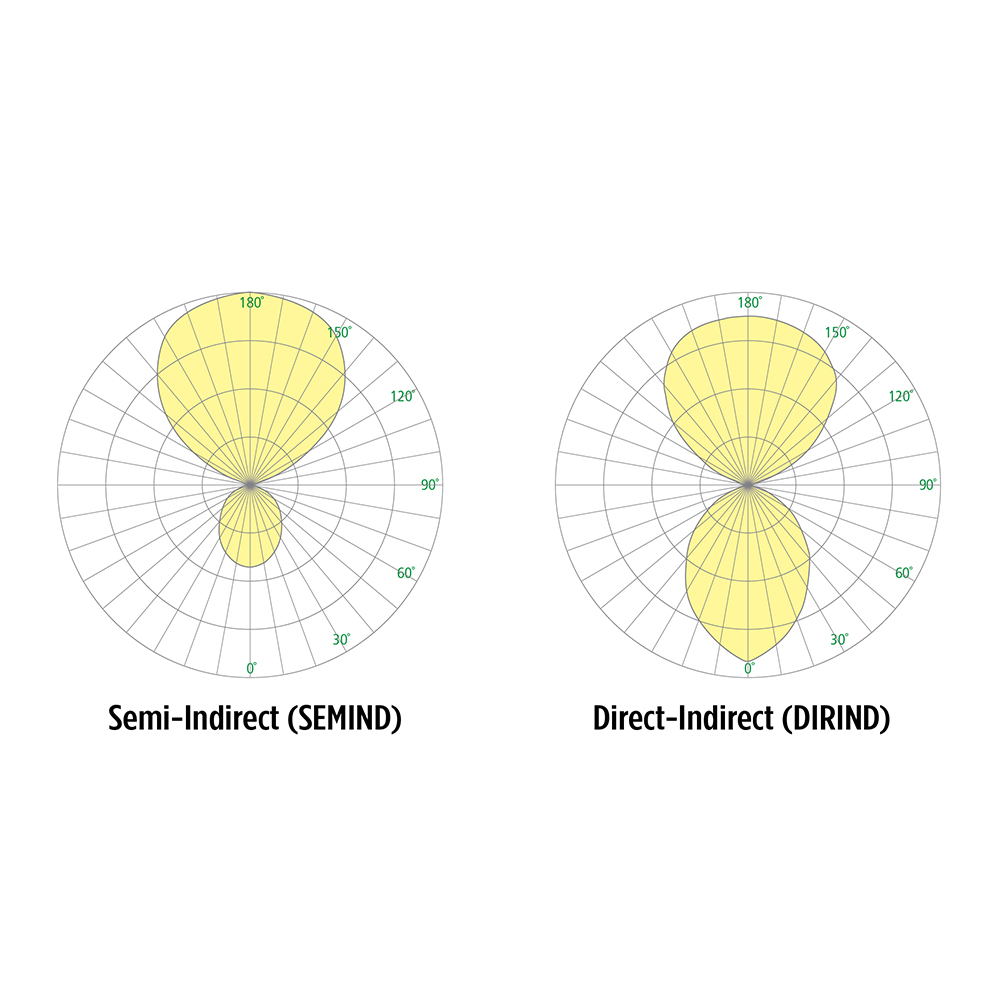

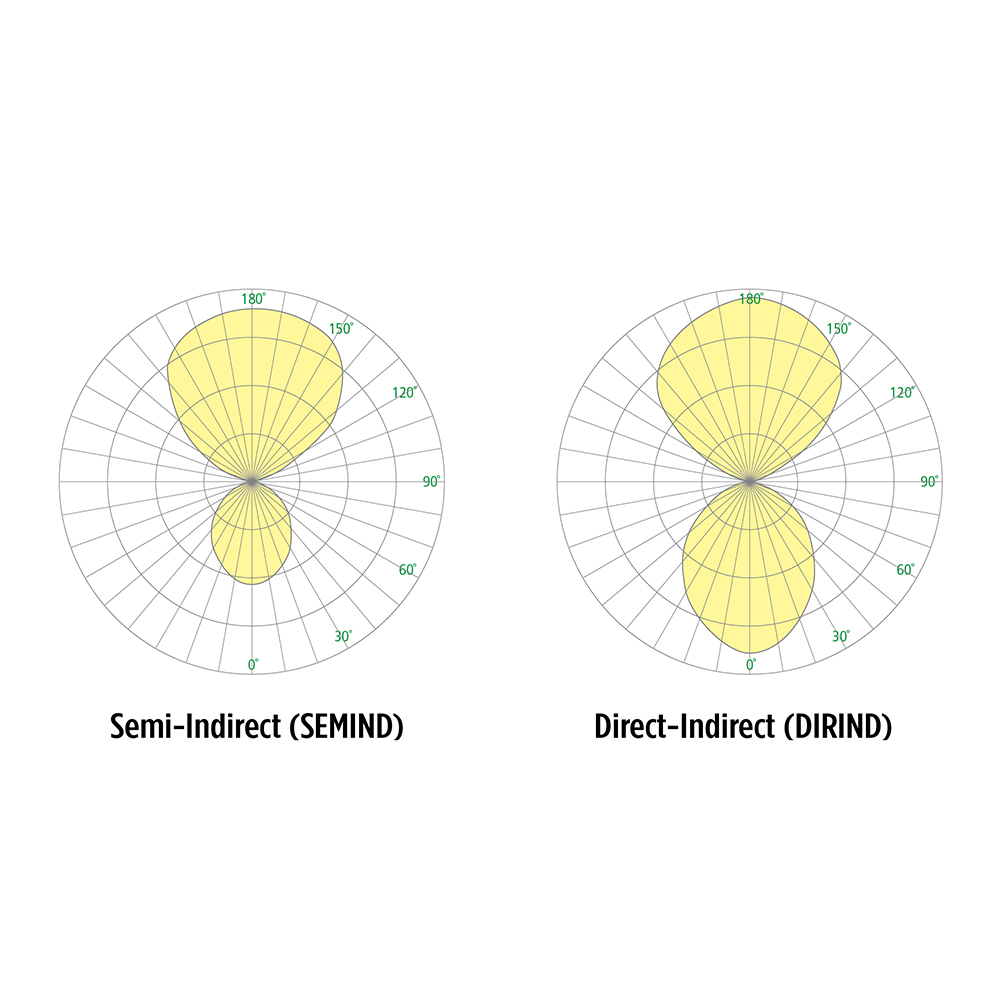

- Up & down light available in direct-indirect or semi-indirect distribution
- Uplight and downlight can be separately switched and dimmed
- Frosted acrylic top and bottom lenses
- Integral LED drivers
- Lightweight aluminum shade panels are shipped disassembled for flat packing
- Optional express 10 day shipping (XPS) for aluminum panel fixtures only
- BAA (Buy American Act) and BABA (Build American, Buy America) compliant
MODELS:
CP6100
48", Alum Panels
Spec Sheet Install IES RevitCP6106
26", Alum Panels
Spec Sheet Install IES RevitCP6120

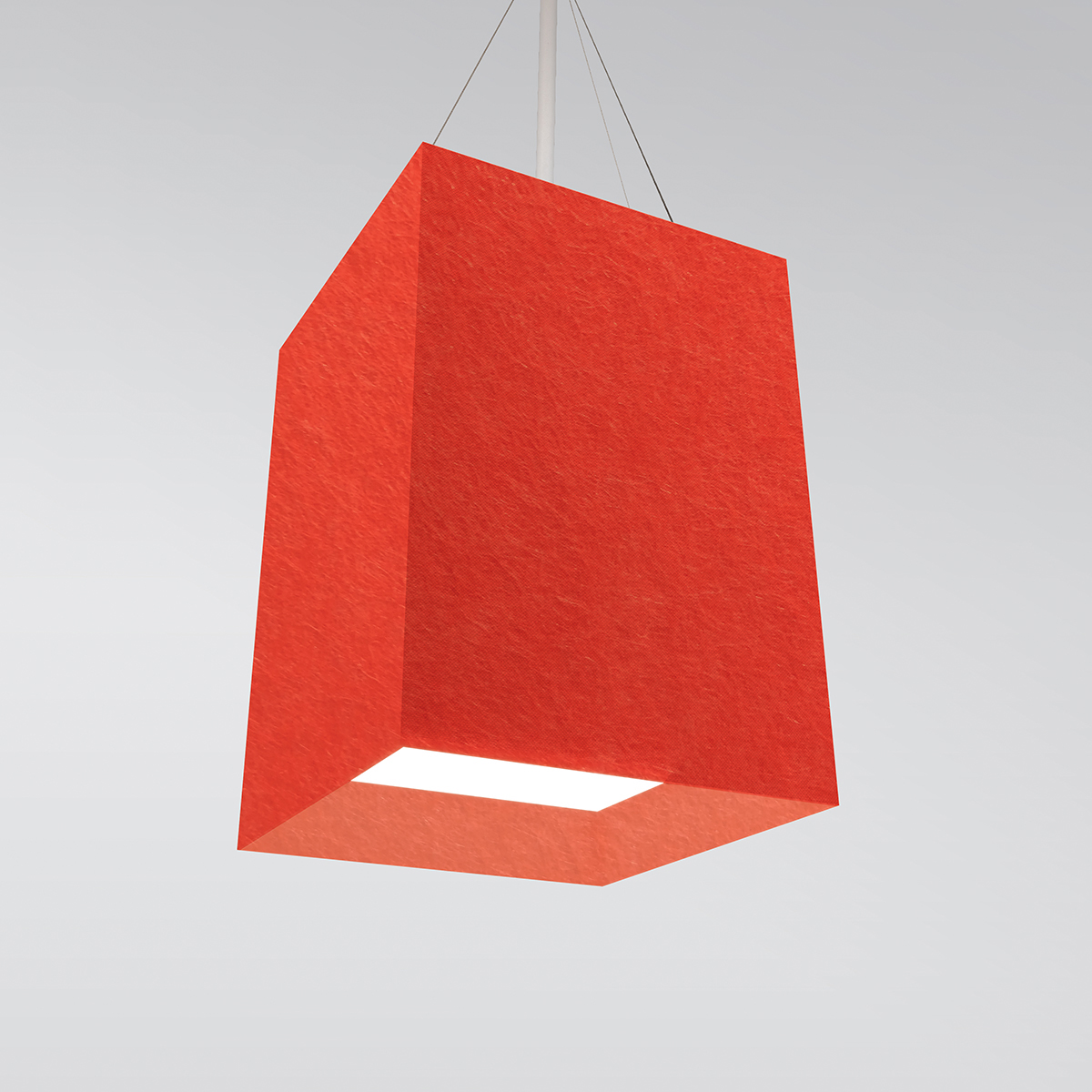

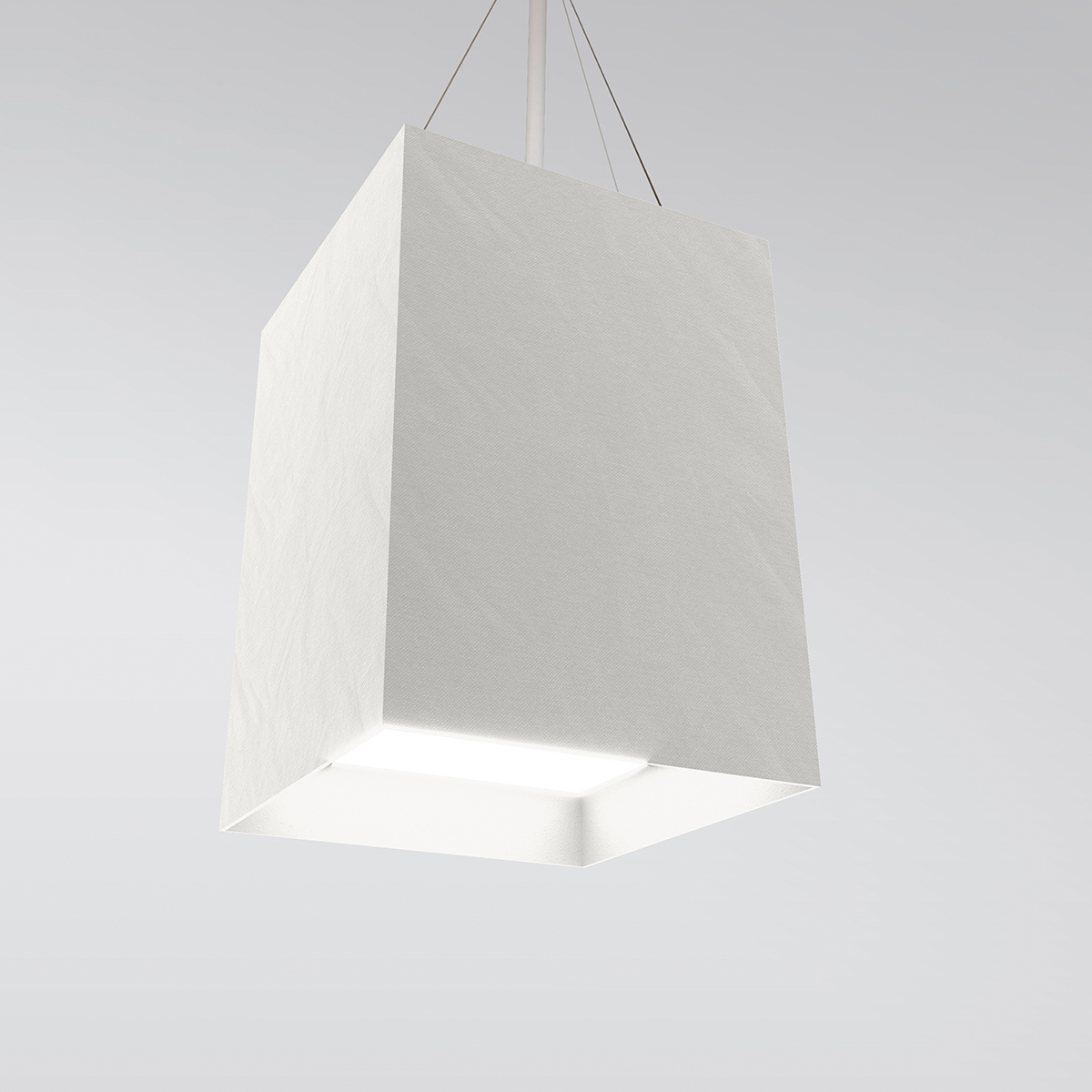

48", Acoustic Panels
Spec Sheet Install IES RevitCP6126
26", Acoustic Panels
Spec Sheet Install IES Revit
Celest SQ's housing can be finished in our Non-VOC Powder Coat Paint or with Acoustic Damping Felt.
Painted
Alternative Metal
Premium Metal
Damping Felt
- Luminous & non-luminous cutouts with mascots, logos, etc.
- Mix & match panel colors (metal or acoustic)
- Alternative control options
Product Specifications & Documents

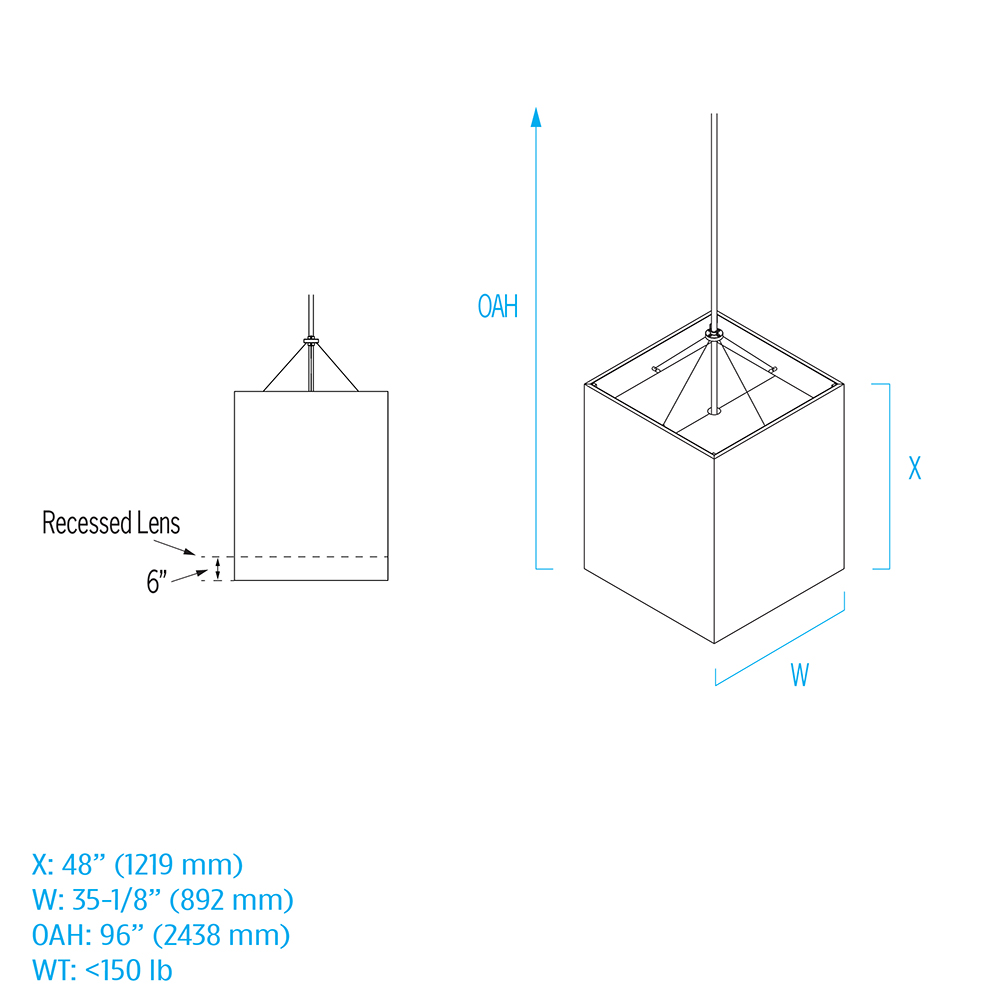

CP6100
48", Alum Panels
- W
- X
- OAH
- WT
- 35-1/8” (892 mm)
- 48” (1219 mm)
- 96” (2439mm)
- < 150 lbs
- CCT
- 3000K
3500K
4000K
- Lumens
- L: 9000 D/I
10000 S/I
H: 18000 D/I
20000 S/I
- Watts
- L: 91 D/I
95 S/I
H: 200 D/I
210 S/I
- Driver
- Integral
- Control
- 0-10V to 1%
- Listings
- Damp

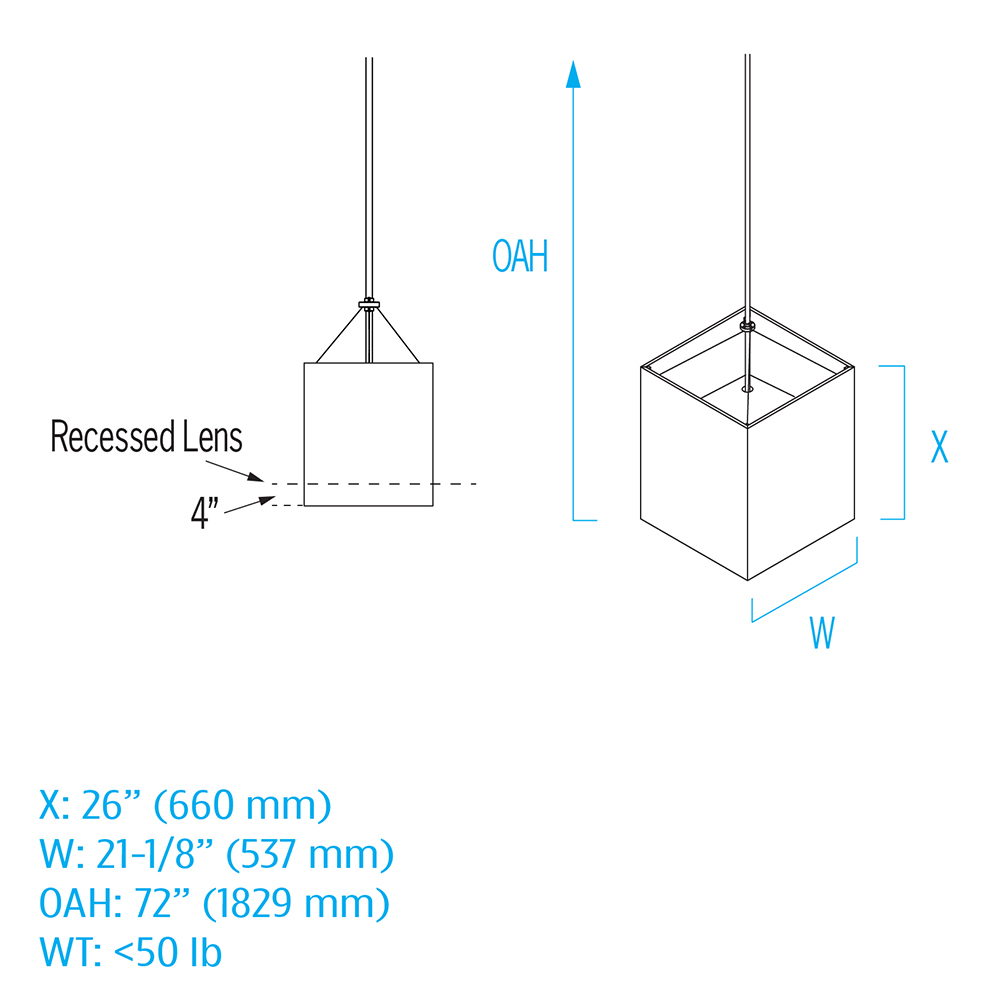

CP6106
26", Alum Panels
- W
- X
- OAH
- WT
- 21-1/8” (537 mm)
- 26” (660 mm)
- 35-1/2” (902 mm)
- < 50 lbs
- CCT
- 3000K
3500K
4000K
- Lumens
- L: 3000
H: 6000 D/I
6500 S/I
- Watts
- L: 26 D/I
31 S/I
H: 58 D/I
68 S/I
- Driver
- Integral
- Control
- 0-10V to 1%
- Listings
- Damp
CP6120
48", Acoustic Panels
- W
- X
- OAH
- WT
- 35-1/8” (892 mm)
- 48” (1219 mm)
- 96” (2439mm)
- < 150 lbs
- CCT
- 3000K
3500K
4000K
- Lumens
- L: 9000 D/I
10000 S/I
H: 18000 D/I
20000 S/I
- Watts
- L: 91 D/I
95 S/I
H: 200 D/I
210 S/I
- Driver
- Integral
- Control
- 0-10V to 1%
- Listings
- Damp
CP6126
26", Acoustic Panels
- W
- X
- OAH
- WT
- 21-1/8” (537 mm)
- 26” (660 mm)
- 35-1/2” (902 mm)
- < 50 lbs
- CCT
- 3000K
3500K
4000K
- Lumens
- L: 3000
H: 6000 D/I
6500 S/I
- Watts
- L: 26 D/I
31 S/I
H: 58 D/I
68 S/I
- Driver
- Integral
- Control
- 0-10V to 1%
- Listings
- Damp
Square pendant light for large venue spaces
Create interest in large venue spaces with the Celest family. Desined to improve illumination and sound in high-use areas, Celest has uplight and downlight sources that create direct-indirect or semi-indirect light distribution and acoustic felt options provide sound mitigation.
View Acoustic Design GuideACOUSTIC DESIGN GUIDE
Check out our Acoustic Lighting Design Guide to inform and inspire how to incorporate acoustics mitigation with lighting.
Learn More about Acoustic LightingARCHITECTURAL ACOUSTICS AND ACOUSTIC LIGHTING
Here are some helpful resources, design tips, and tools for incorporating acoustic materials into architectural spaces.
Video
Tech Talk: CELEST Geometric Pendant Collection
Visa Lighting product engineer Zac Perszyk, discusses options, finishes, sizes, shapes, and customization opportunities for the Celest product family.
