MINI COLONNADE
Wall Sconces

Inspired by the original Colonnade family, Mini Colonnade sconces provide distinguished accent lighting for commercial and institutional spaces.

  • Integral driver
  • Modular design for replacement of LED source and driver
  • Solid metal accent bars; die cast center bracket
  • Extruded 1/8” thick white acrylic diffuser with matte finish
  • UV stable; UL-94 HB Flame Class rated
  • ADA compliant
  • No VOC powder coat paint; Low VOC clear coat on metal finishes
  • Optional express 10 day shipping (XPS)
  • ETL listed for damp locations. Not suited for exterior applications
  • BAA (Buy American Act) and BABA (Build American, Buy America) compliant

Colonnade wall sconces can be finished in our Non-VOC powder coat colors or our alternative metal finishes. It is also available in our premium metal finishes.

Polished Brass is not available on CB5114.

Painted
Velvet Black
Deoro Gold
Agate Grey
Alpine Green
Baja Beige
Cove Blue
Glacier White
Harbor Grey
Jet Black
Ocean Blue
Sagebrush Green
Shoreline Grey
Slate Grey
Sierra Taupe
Terracotta Canyon
Traffic White
Vineyard Red
Blade Silver
Graphite Silver
Bronze
Bronze Matte
Alternative Metal
Brushed Chrome Alternative
Satin Nickel Alternative
Brushed Brass Alternative
Brushed Bronze Alternative
Pewter Alternative
Oil-Rubbed Bronze Alternative
Rustic Brass Alternative
Brushed Copper Alternative
Premium Metal
Polished Brass
Brushed Aluminum
Brushed Brass
  • RGB
  • Fixture length
  • Custom color or material
  • Add roll bars or rearrange roll bar locations

Product Specifications & Documents

CB5110

Four Bars

  • H
  • W
  • D
  • 17" (432 mm)
  • 4-3/4" (121 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 700
    H: 1000
  • Watts
  • L: 7
    H: 12
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Damp
    ADA

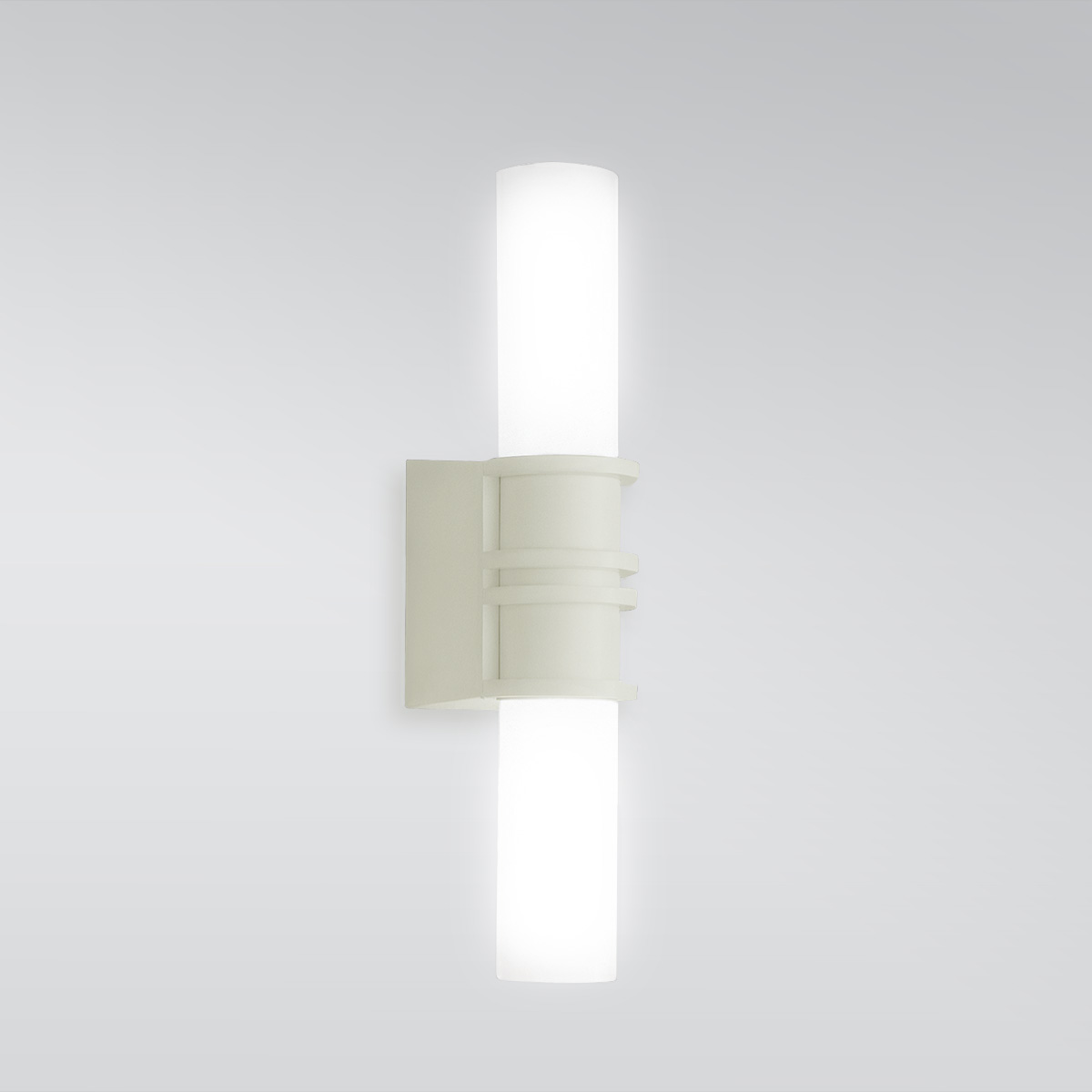

CB5112

Center Bars

  • H
  • W
  • D
  • 17" (432 mm)
  • 4-3/4" (121 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 700
    H: 1000
  • Watts
  • L: 7
    H: 12
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Damp
    ADA

CB5114

Cross Bars

  • H
  • W
  • D
  • 17" (432 mm)
  • 4-3/4" (121 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 700
    H: 1000
  • Watts
  • L: 7
    H: 12
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Damp
    ADA

MINI COLONNADE

Mini Colonnade is a versatile indoor cylinder fixture with bar accent variations and applications. Whether lined up along doorways, placed as pendants, or affixed down hallways, Mini Collonade's classic designs bring a clean glow to a timeless lamp shape. This smaller sconce model features a thin tube diffuser and classic support details.
