CELEST HX
Large Venue and Acoustic Lights

Celest HX makes a bold geometric statement and adds whimsy to architectural spaces while providing useful noise reduction with our acoustic-dampening felt panels. With extensive options for finishes, sizes, shapes, and customization opportunities, these fixtures offer limitless design aesthetic options for any large venue application.

  • Offered in two sizes : 24" or 48" heights
  • Up & down light available in direct-indirect or semi-indirect distribution
  • Uplight and downlight can be separately switched and dimmed
  • Frosted acrylic top and bottom lenses
  • Integral LED drivers
  • Lightweight aluminum shade panels are shipped disassembled for flat packing
  • Optional express 10 day shipping (XPS) for aluminum panel fixtures only
  • BAA (Buy American Act) and BABA (Build American, Buy America) compliant
MODELS:

Celest HQ's housing can be finished in our Non-VOC Powder Coat Paint or with Acoustic Dampening Felt.

Painted
Velvet Black
Deoro Gold
Agate Grey
Alpine Green
Cove Blue
Glacier White
Harbor Grey
Jet Black
Ocean Blue
Sagebrush Green
Shoreline Grey
Slate Grey
Sierra Taupe
Terracotta Canyon
Traffic White
Vineyard Red
Blade Silver
Graphite Silver
Bronze
Bronze Matte
Alternative Metal
Brushed Chrome Alternative
Satin Nickel Alternative
Brushed Brass Alternative
Brushed Bronze Alternative
Pewter Alternative
Oil-Rubbed Bronze Alternative
Rustic Brass Alternative
Brushed Copper Alternative
Premium Metal
Brushed Aluminum
Damping Felt
Pewter
Slate
Sunshine
Mandarin
Ochre
Bark
Grass
Malachite
Cobalt
Sky
Chambray
Linen
Ecru
Greige
Frost
Ivory
Smoke
Tar
Fossil
Cadet
  • Luminous & non-luminous cutouts with mascots, logos, etc.
  • Mix & match panel colors (metal or acoustic)
  • Alternative control options

Product Specifications & Documents

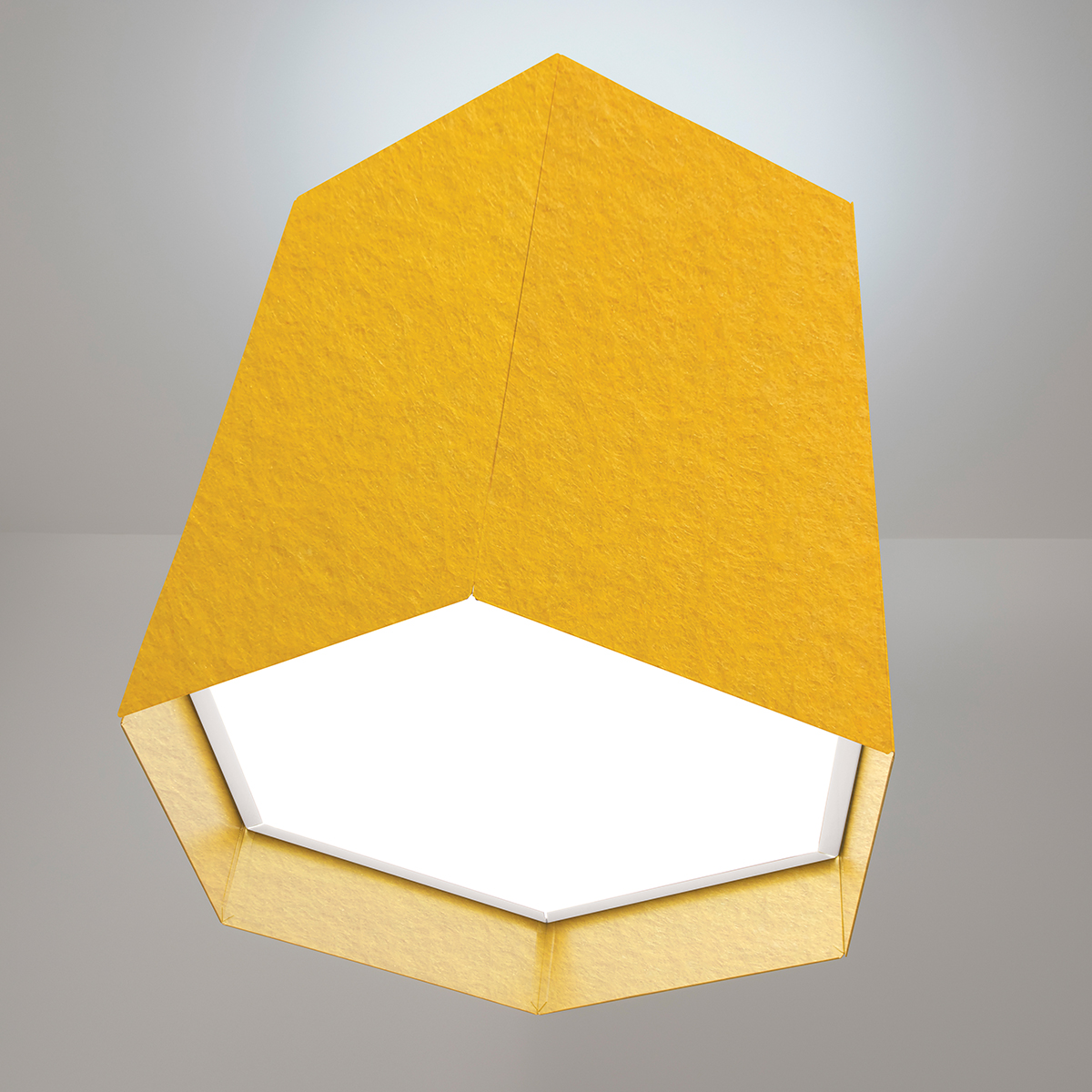

CP6102

48", Alum Panels

  • X
  • OAH
  • WT
  • 48” (1219 mm)
  • 96” (2439mm)
  • < 150 lbs
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 11000 D/I
    11500 S/I
    H: 21500 D/I
    23000 S/I
  • Watts
  • L: 108
    H: 238 D/I
    239 S/I
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Damp

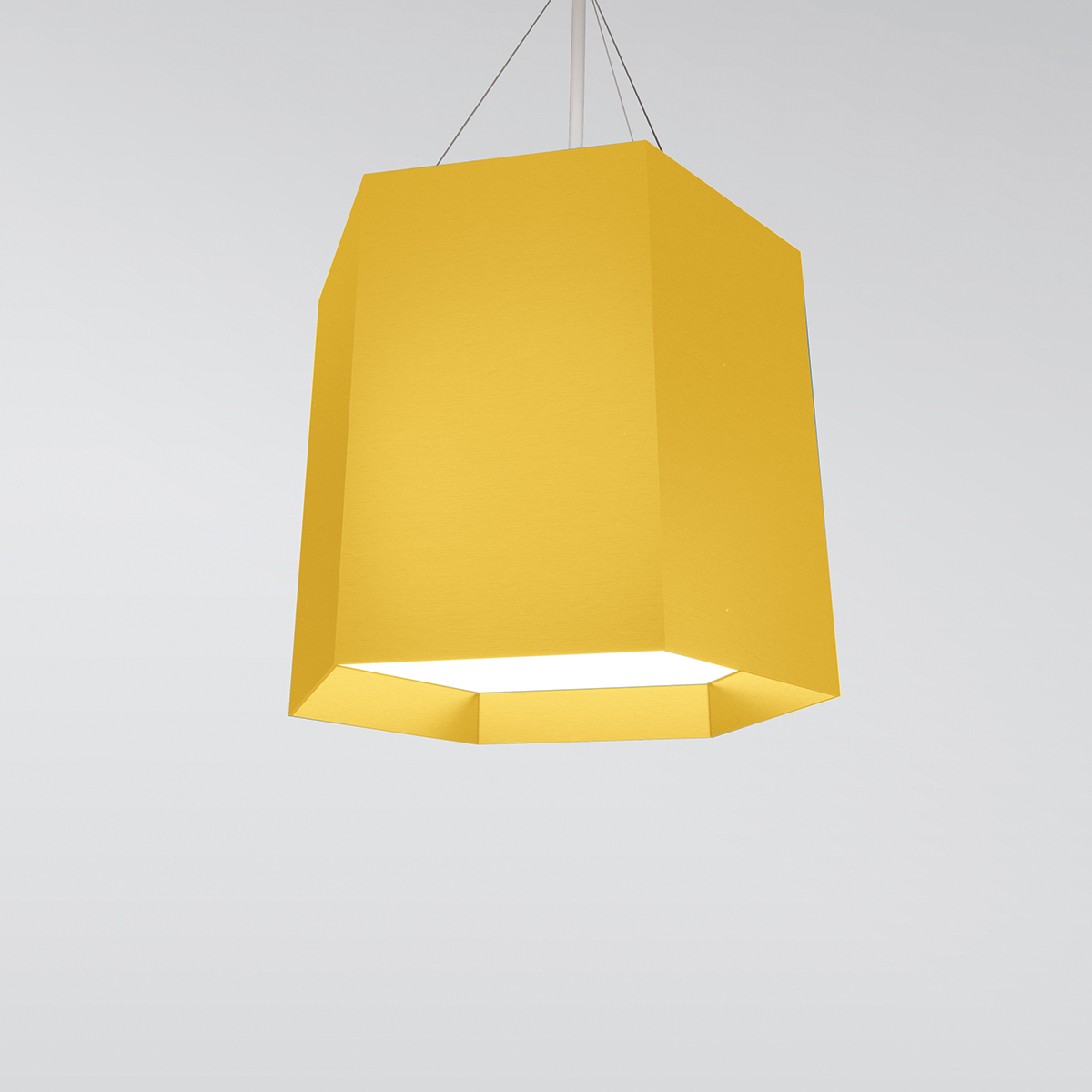

CP6108

24", Alum Panels

  • X
  • OAH
  • WT
  • 23-1/2” (570 mm)
  • 72” (1829 mm)
  • < 50 lbs
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 2000
    H: 4500 D/I
    4000 S/I
  • Watts
  • L: 21 D/I
    18 S/I
    H: 45 D/I
    40 S/I
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Damp

CP6122

48", Acoustic Panels

  • X
  • OAH
  • WT
  • 48” (1219 mm)
  • 96” (2439mm)
  • < 150 lbs
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 11000 D/I
    11500 S/I
    H: 21500 D/I
    23000 S/I
  • Watts
  • L: 108
    H: 238 D/I
    239 S/I
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Damp

CP6128

24", Acoustic Panels

  • X
  • OAH
  • WT
  • 23-1/2” (570 mm)
  • 72” (1829mm)
  • < 50 lbs
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 2000
    H: 4500 D/I
    4000 S/I
  • Watts
  • L: 21 D/I
    18 S/I
    H: 45 D/I
    40 S/I
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Damp
Celest video describing how we build the fixture
Video

Video

Tech Talk: CELEST Geometric Pendant Collection

Visa Lighting product engineer Zac Perszyk, discusses options, finishes, sizes, shapes, and customization opportunities for the Celest product family.

Noise Reducing Lighting
