SEQUENCE SQUARE
Luminous Rectilinear Pendants

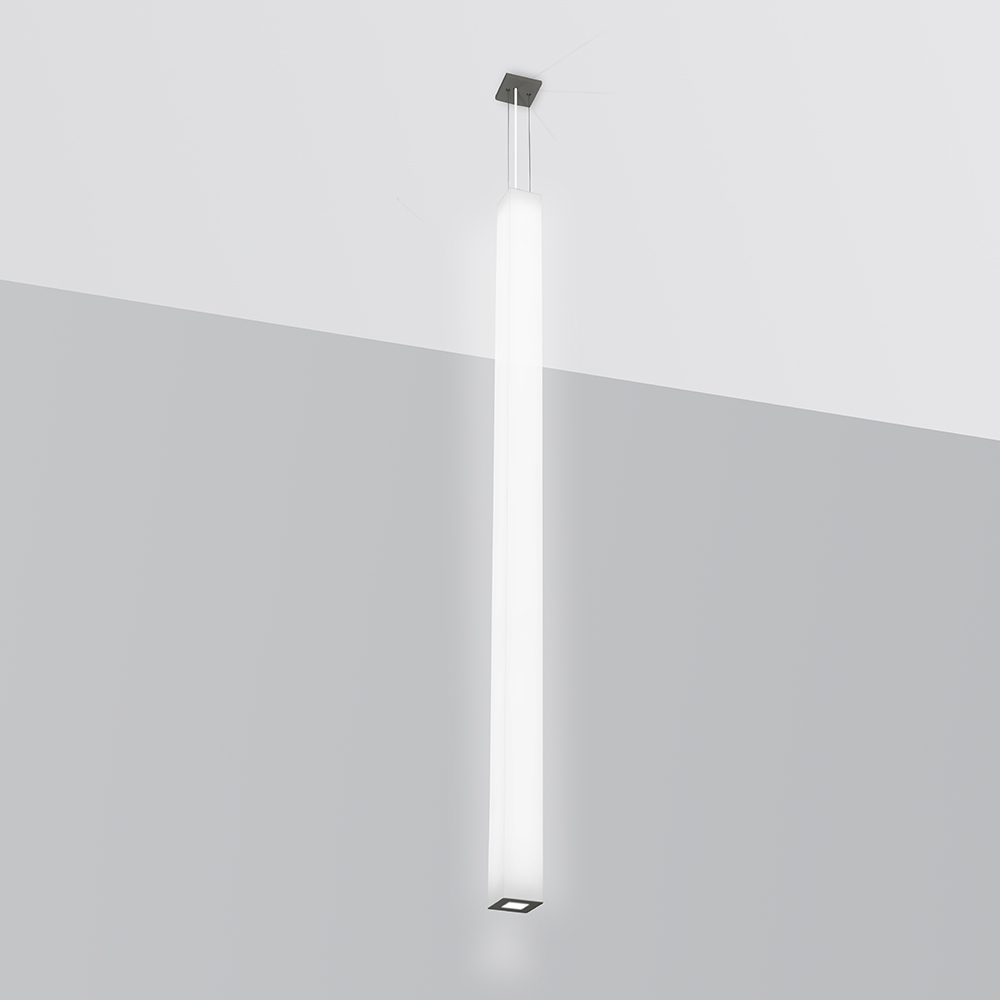

Inspired by our popular Sequence family, Sequence Square luminous rectilinear pendants allow designers to further accentuate vertical lines in the interior architecture. Mounted in clusters of various model lengths and widths, these pendants evoke an eye-catching crystalline structure. Most importantly, the acrylic body is fully luminous, which means illumination doesn’t diminish at the corners or ends.

  • Top mounted driver is standard on 4" models with optional remote driver
  • Color changing RGB LED is DMX-512 compatible
  • Optional LED downlight, 0-10V dimmable, with narrow, medium, or wide optical distribution options
  • Mounts to standard electrical junction box with provided hardware
  • Matte white rectilinear acrylic body
  • BAA (Buy American Act) and BABA (Build American, Buy America) compliant
MODELS:

The Sequence square pendant can be finished in our Non-VOC powder coat colors or our exclusive Eco-Friendly Metal Finishes and our premium metal finishe Brushed Aluminum.

Painted
Velvet Black
Deoro Gold
Agate Grey
Alpine Green
Cove Blue
Glacier White
Harbor Grey
Jet Black
Ocean Blue
Sagebrush Green
Shoreline Grey
Slate Grey
Sierra Taupe
Terracotta Canyon
Traffic White
Vineyard Red
Blade Silver
Graphite Silver
Bronze
Bronze Matte
  • Custom colors

Product Specifications & Documents

CP5820

4 in x 2 ft

  • W
  • X
  • OAH
  • 4-1/2" (114 mm)
  • 34-1/4" (870 mm)
  • 192" (4877 mm)
  • CCT
  • 3000K
    3500K
    4000K
    RGB
  • Lumens
  • 1200
  • Watts
  • 11
    RGB: 12
  • Driver
  • Top mounted
    or Remote option
  • Control
  • 0-10V to 1%
    DMX
  • Listings
  • Damp

CP5822

4 in x 3 ft

  • W
  • X
  • OAH
  • 4-1/2" (114 mm)
  • 45-1/8" (1146 mm)
  • 192" (4877 mm)
  • CCT
  • 3000K
    3500K
    4000K
    RGB
  • Lumens
  • 2200
  • Watts
  • 20
    RGB: 20
  • Driver
  • Top mounted
    or Remote option
  • Control
  • 0-10V to 1%
    DMX
  • Listings
  • Damp

CP5824

4 in x 4 ft

  • W
  • X
  • OAH
  • 4-1/2" (114 mm)
  • 55-7/8" (1419 mm)
  • 192" (4877 mm)
  • CCT
  • 3000K
    3500K
    4000K
    RGB
  • Lumens
  • 2900
  • Watts
  • 26
    RGB: 28
  • Driver
  • Top mounted
    or Remote option
  • Control
  • 0-10V to 1%
    DMX
  • Listings
  • Damp

CP5826

4 in x 5 ft

  • W
  • X
  • OAH
  • 4-1/2" (114 mm)
  • 70-7/8" (1800 mm)
  • 192" (4877 mm)
  • CCT
  • 3000K
    3500K
    4000K
    RGB
  • Lumens
  • 3900
  • Watts
  • 37
    RGB: 40
  • Driver
  • Top mounted
    or Remote option
  • Control
  • 0-10V to 1%
    DMX
  • Listings
  • Damp

CP5828

4 in x 6 ft

  • W
  • X
  • OAH
  • 4-1/2" (114 mm)
  • 81-5/8" (2073 mm)
  • 192" (4877 mm)
  • CCT
  • 3000K
    3500K
    4000K
    RGB
  • Lumens
  • 4500
  • Watts
  • 43
    RGB: 44
  • Driver
  • Top mounted
    or Remote option
  • Control
  • 0-10V to 1%
    DMX
  • Listings
  • Damp

CP5830

4 in x 8 ft

  • W
  • X
  • OAH
  • 4-1/2" (114 mm)
  • 103-1/4" (2623 mm)
  • 192" (4877 mm)
  • CCT
  • 3000K
    3500K
    4000K
    RGB
  • Lumens
  • 6100
  • Watts
  • 57
    RGB: 60
  • Driver
  • Top mounted
    or Remote option
  • Control
  • 0-10V to 1%
    DMX
  • Listings
  • Damp

CP5836

8 in x 2 ft

  • W
  • X
  • OAH
  • 8-1/4" (210 mm)
  • 24-7/8" (632 mm)
  • 192" (4877 mm)
  • CCT
  • 3000K
    3500K
    4000K
    RGB
  • Lumens
  • 5400-5500
  • Watts
  • 48
    RGB: 24
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
    DMX
    DALI
  • Listings
  • Damp

CP5838

8 in x 3 ft

  • W
  • X
  • OAH
  • 8-1/4" (210 mm)
  • 35-7/8" (911 mm)
  • 192" (4877 mm)
  • CCT
  • 3000K
    3500K
    4000K
    RGB
  • Lumens
  • 9500-9800
  • Watts
  • 86
    RGB: 40
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
    DMX
    DALI
  • Listings
  • Damp

CP5840

8 in x 4 ft

  • W
  • X
  • OAH
  • 8-1/4" (210 mm)
  • 47-7/8" (1191 mm)
  • 192" (4877 mm)
  • CCT
  • 3000K
    3500K
    4000K
    RGB
  • Lumens
  • 12200-12600
  • Watts
  • 109
    RGB: 56
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
    DMX
    DALI
  • Listings
  • Damp

CP5842

8 in x 5 ft

  • W
  • X
  • OAH
  • 8-1/4" (210 mm)
  • 57-7/8" (1470 mm)
  • 192" (4877 mm)
  • CCT
  • 3000K
    3500K
    4000K
    RGB
  • Lumens
  • 16200-16700
  • Watts
  • 161
    RGB: 79
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
    DMX
    DALI
  • Listings
  • Damp

CP5844

8 in x 6 ft

  • W
  • X
  • OAH
  • 8-1/4" (210 mm)
  • 68-7/8" (1749 mm)
  • 192" (4877 mm)
  • CCT
  • 3000K
    3500K
    4000K
    RGB
  • Lumens
  • 19000-19600
  • Watts
  • 189
    RGB: 87
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
    DMX
    DALI
  • Listings
  • Damp

CP5846

8 in x 8 ft

  • W
  • X
  • OAH
  • 8-1/4" (210 mm)
  • 90-7/8" (2308 mm)
  • 192" (4877 mm)
  • CCT
  • 3000K
    3500K
    4000K
    RGB
  • Lumens
  • 25800-26600
  • Watts
  • 256
    RGB: 118
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
    DMX
    DALI
  • Listings
  • Damp

Accentuate architectural lines with luminous rectilinear pendant lights

These crisp, evenly illuminated pendants are available in 4" and 8" diameters with lengths ranging from 2' - 8' View Gallery

  • Sequence Square pendant detail image of LED downlight

    Optional Downlight

    For areas that need more light, the optional downlight is available with narrow, medium or wide optic beam angles.

  • RGB rectilinear pendant light in Orange

    RGB Source Option

    Add a pop of color to your space with Sequence Square in RGB! You can program Sequence Square to beautifully illuminate in any color with DMX-512 compatible RGB models.

  • Luminous rectilinear pendant with top mounted LED driver

    Remote or Top Mounted Driver

    4" Sequence Square models come standard with a top mounted driver. For a fully illuminated body select remote driver option.
