SCOPE
Cylinder Outdoor Sconce, Window Mullion Friendly

Scope is a small and elegant cylindrical outdoor fixture that can be mounted on exterior walls and window mullions. Scope is offered in a variety of product models featuring luminous body and cast body with beam light housing styles—mix and match models to achieve your exterior lighting goals while maintaining a unified luminaire style.

  • Slim egress lighting
  • Integral driver (unless RMD option is selected)
  • Narrow or Medium beam light spread
  • 0-10V dimming to 10%
  • IP65 rated
  • Optional express 10 day shipping (XPS)
  • BAA (Buy American Act) and BABA (Build American, Buy America) compliant
MODELS:
Painted
Velvet Black
Deoro Gold
Agate Grey
Alpine Green
Cove Blue
Glacier White
Harbor Grey
Jet Black
Ocean Blue
Sagebrush Green
Shoreline Grey
Slate Grey
Sierra Taupe
Terracotta Canyon
Traffic White
Vineyard Red
Blade Silver
Graphite Silver
Bronze
Bronze Matte
  • Custom finish colors
  • Colored diffusers
  • Alternate beam angles
  • Reduced lumen output

Product Specifications & Documents

OW2300

Downlight & Uplight

  • H
  • W
  • D
  • 15" (381 mm)
  • 3-7/8" (98 mm)
  • 5-1/4" (133 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 450 (up)
    450 (dn)
  • Watts
  • 15
  • Driver
  • Integral
    Remote option
  • Control
  • 0-10V to 10%
  • Listings
  • Wet
    IP65

OW2302

Fully Luminous

  • H
  • W
  • D
  • 15" (381 mm)
  • 3-7/8" (98 mm)
  • 5-1/4" (133 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 1000
  • Watts
  • 15
  • Driver
  • Integral
    Remote option
  • Control
  • 0-10V to 10%
  • Listings
  • Wet
    IP65

OW2304

Half Luminous w/ Downlight

  • H
  • W
  • D
  • 15" (381 mm)
  • 3-7/8" (98 mm)
  • 5-1/4" (133 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 500 (up)
    450 (dn)
  • Watts
  • 15
  • Driver
  • Integral
    Remote option
  • Control
  • 0-10V to 10%
  • Listings
  • Wet
    IP65

OW2306

Downlight or Uplight

  • H
  • W
  • D
  • 15" (381 mm)
  • 3-7/8" (98 mm)
  • 5-1/4" (133 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 900
  • Watts
  • 15
  • Driver
  • Integral
    Remote option
  • Control
  • 0-10V to 10%
  • Listings
  • Wet
    IP65

OW2308

Half Luminous, no Downlight

  • H
  • W
  • D
  • 15" (381 mm)
  • 3-7/8" (98 mm)
  • 5-1/4" (133 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 1000
  • Watts
  • 15
  • Driver
  • Integral
    Remote option
  • Control
  • 0-10V to 10%
  • Listings
  • Wet
    IP65

Small Cylindrical Outdoor Sconce for Exterior Walls and Window Mullions

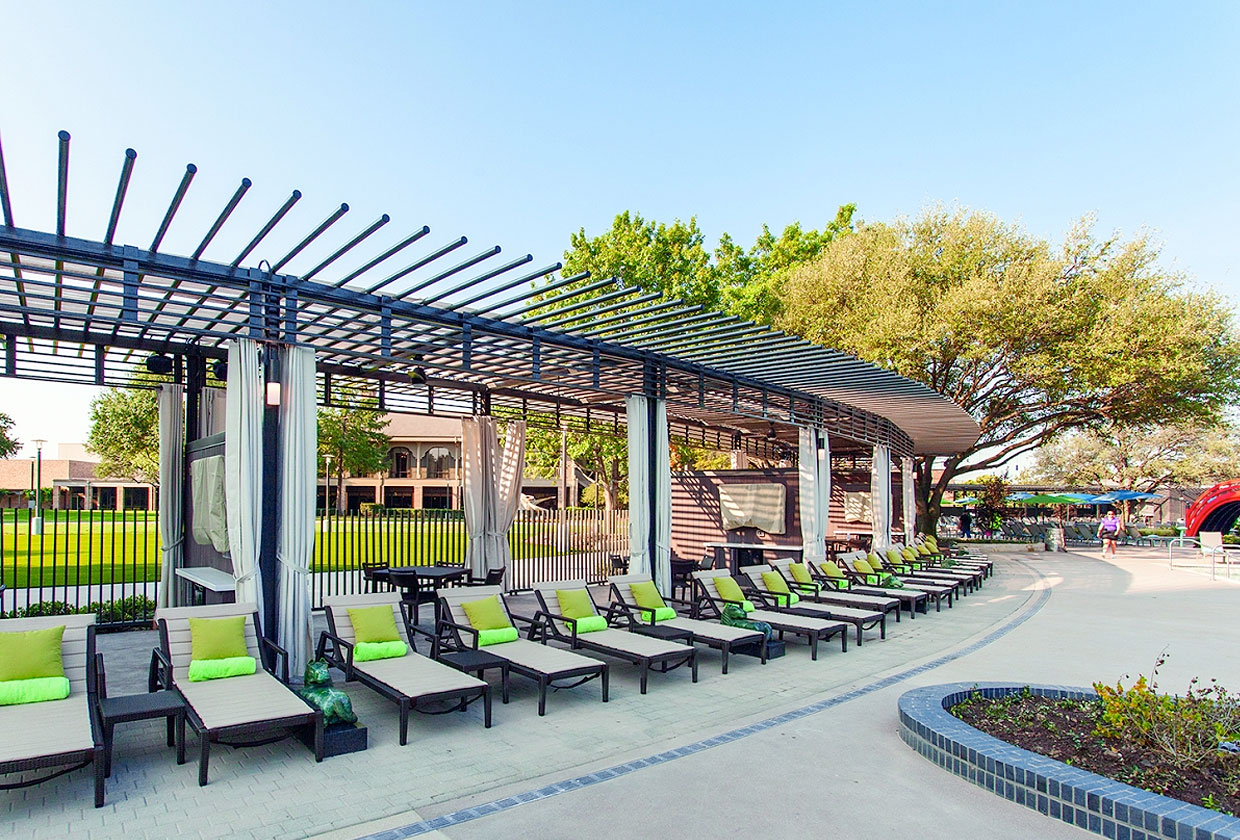

Multiple body styles provide quality illumination catered to individual needs. View Application Images
