SHINE
Outdoor Surface Lights

Built for outdoor applications, this Shine outdoor surface light will allow for a seamless continuity of design if paired with our indoor version of this luminaire. The Shine family offers simple, luminous design that is modern and highly efficient. Shine’s linear diffuser body with solid square endcaps can be mounted horizontally or vertically.

  • Integral high power factor electronic driver
  • Modular design for replacement of LED source and driver
  • Vertical or horizontal mounting
  • Cast and extruded aluminum construction
  • Frosted high impact grade acrylic
  • Tamper resistant fasteners
  • Optional express 10 day shipping (XPS)
  • BAA (Buy American Act) and BABA (Build American, Buy America) compliant
MODELS:

The Shine outdoor surface light can be finished in our Non-VOC powder coat colors.

Painted
Velvet Black
Deoro Gold
Agate Grey
Alpine Green
Cove Blue
Glacier White
Harbor Grey
Jet Black
Ocean Blue
Sagebrush Green
Shoreline Grey
Slate Grey
Sierra Taupe
Terracotta Canyon
Traffic White
Vineyard Red
Blade Silver
Graphite Silver
Bronze
Bronze Matte
  • 2700K
  • Custom colors

Product Specifications & Documents

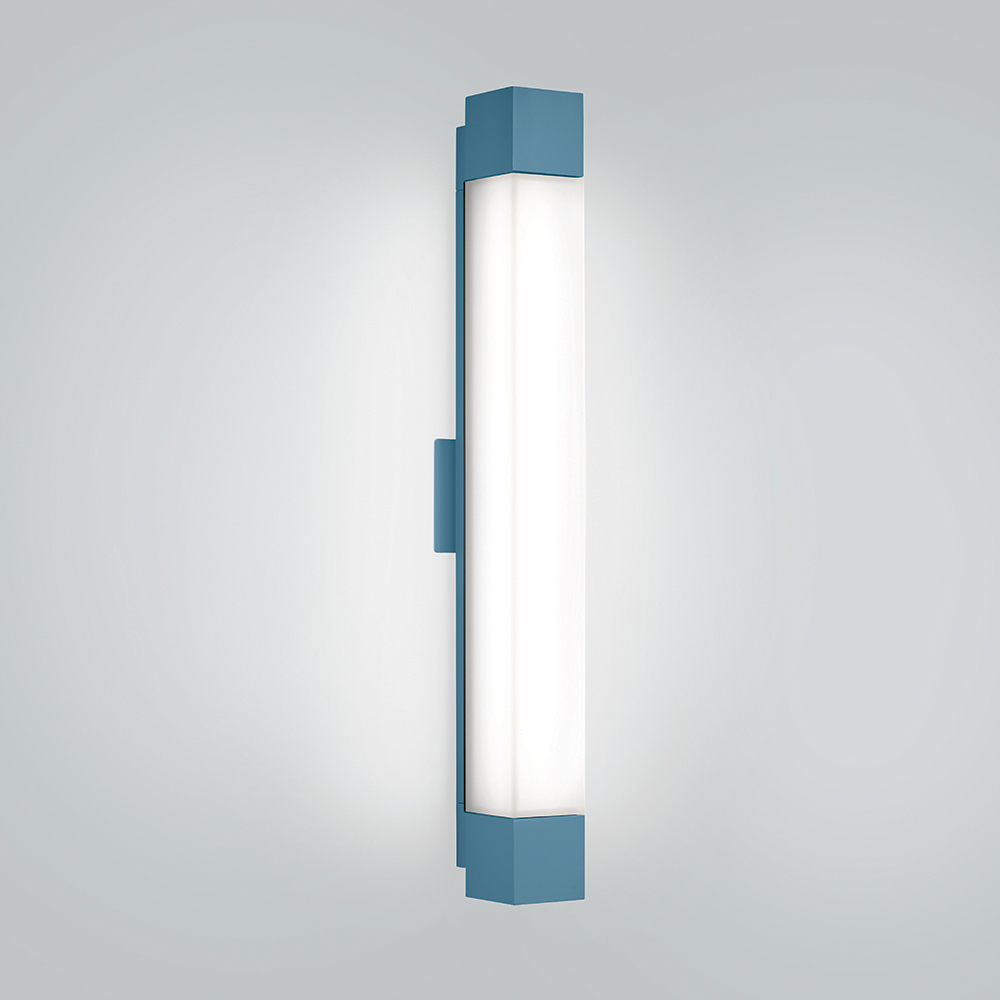

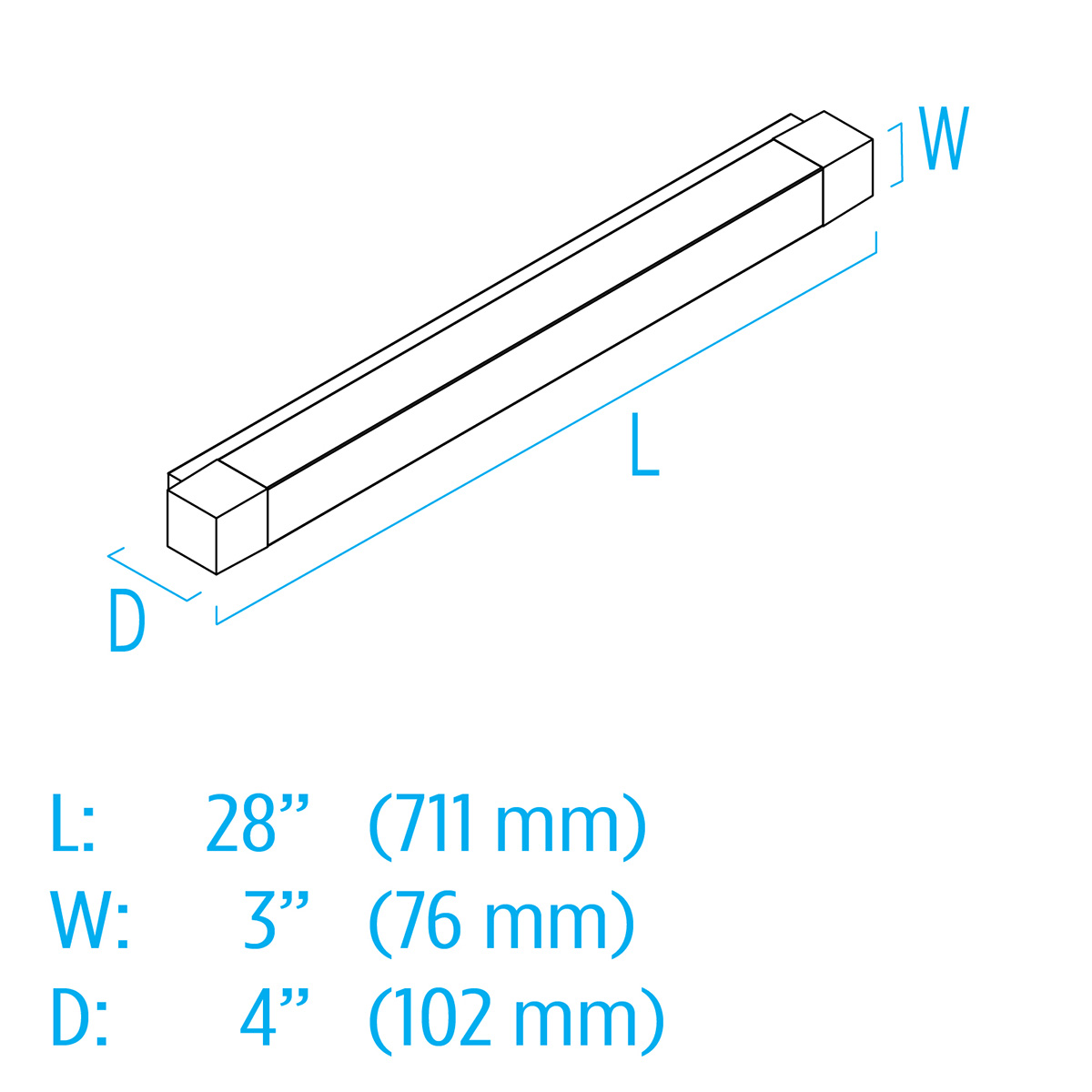

OW5513

28", Outdoor

  • L
  • W
  • D
  • 28" (711 mm)
  • 3" (76 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 1000
    H: 1500
  • Watts
  • L: 10
    H: 15
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Wet
    IP55
    ADA

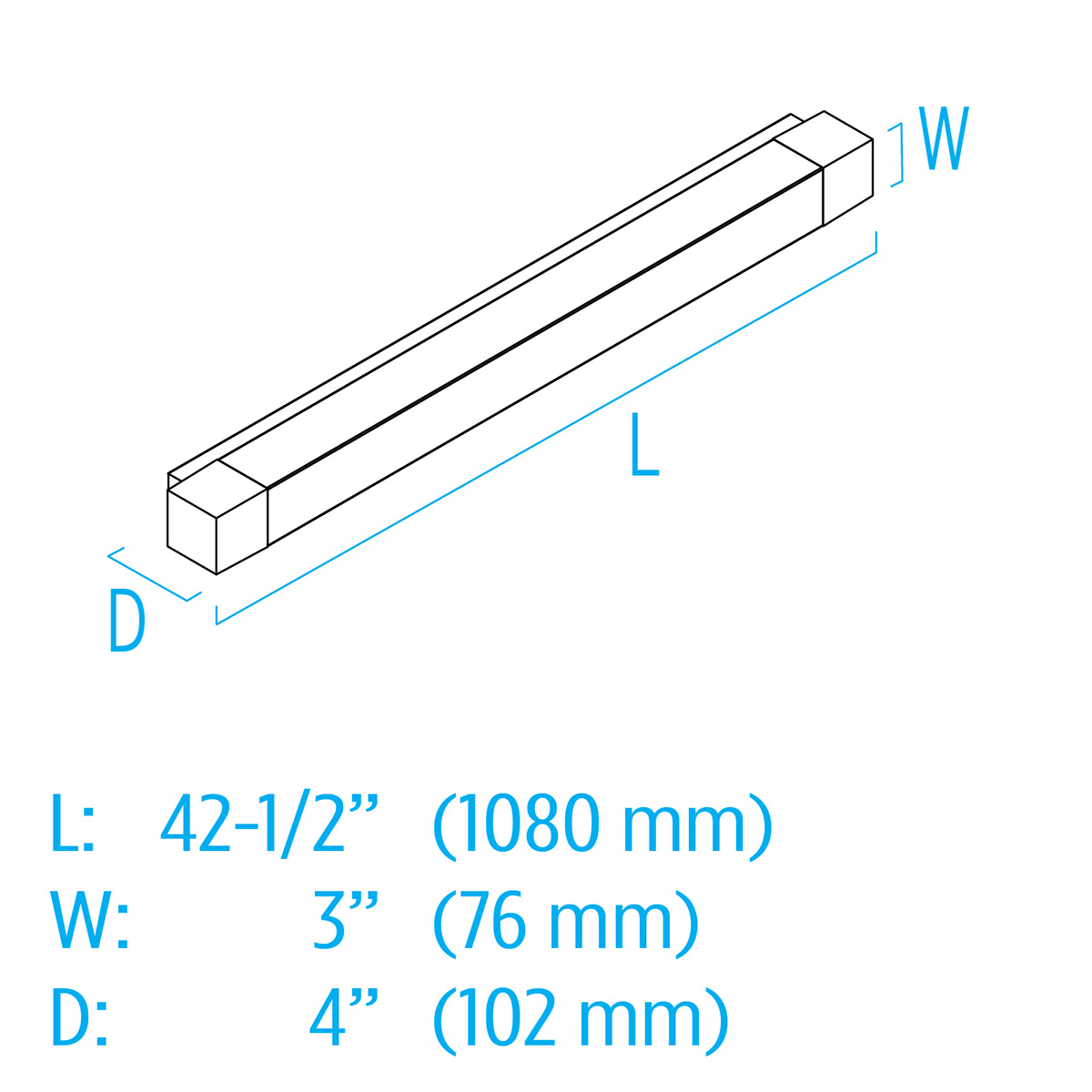

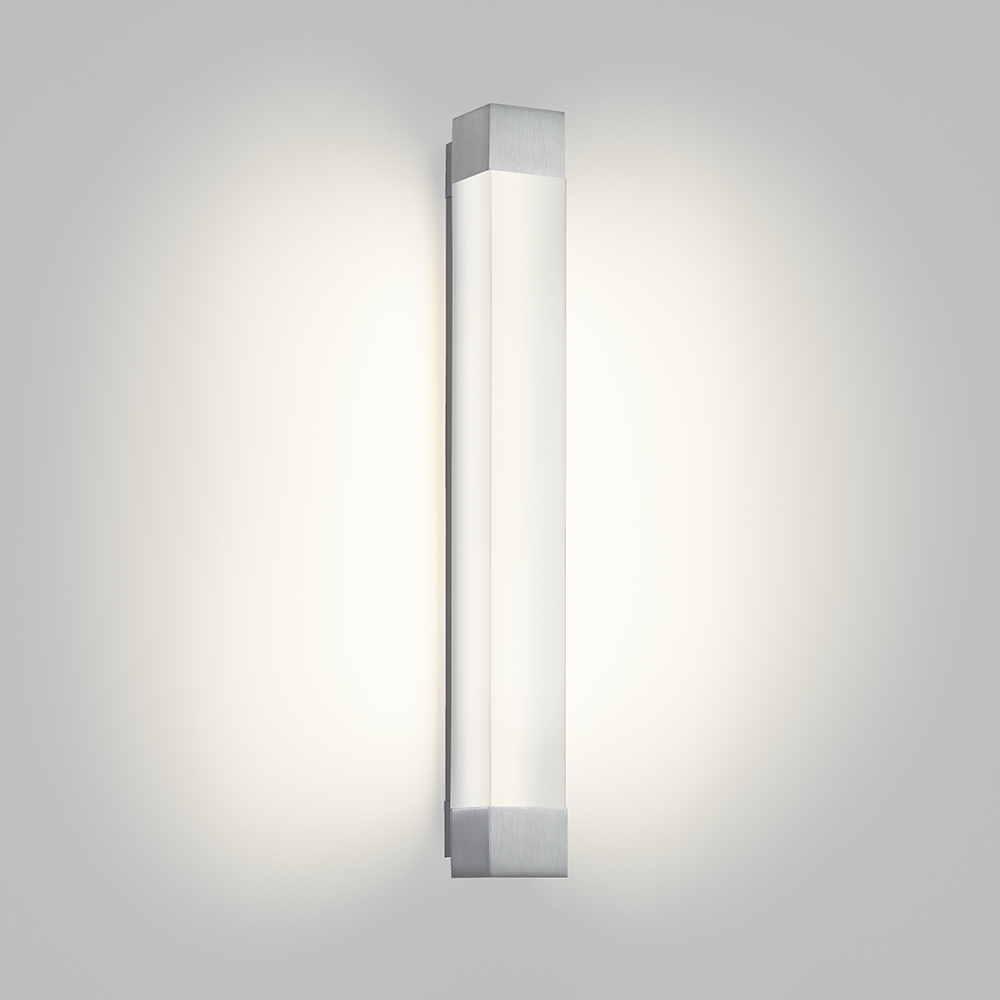

OW5515

42", Outdoor

  • L
  • W
  • D
  • 42-1/2" (1080 mm)
  • 3" (76 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 1500
    H: 2400
  • Watts
  • L: 14
    H: 25
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Wet
    IP55
    ADA

OW5517

52", Outdoor

  • L
  • W
  • D
  • 52-1/2" (1334 mm)
  • 3" (76 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 2100
    H: 3200
  • Watts
  • L: 20
    H: 32
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Wet
    IP55
    ADA

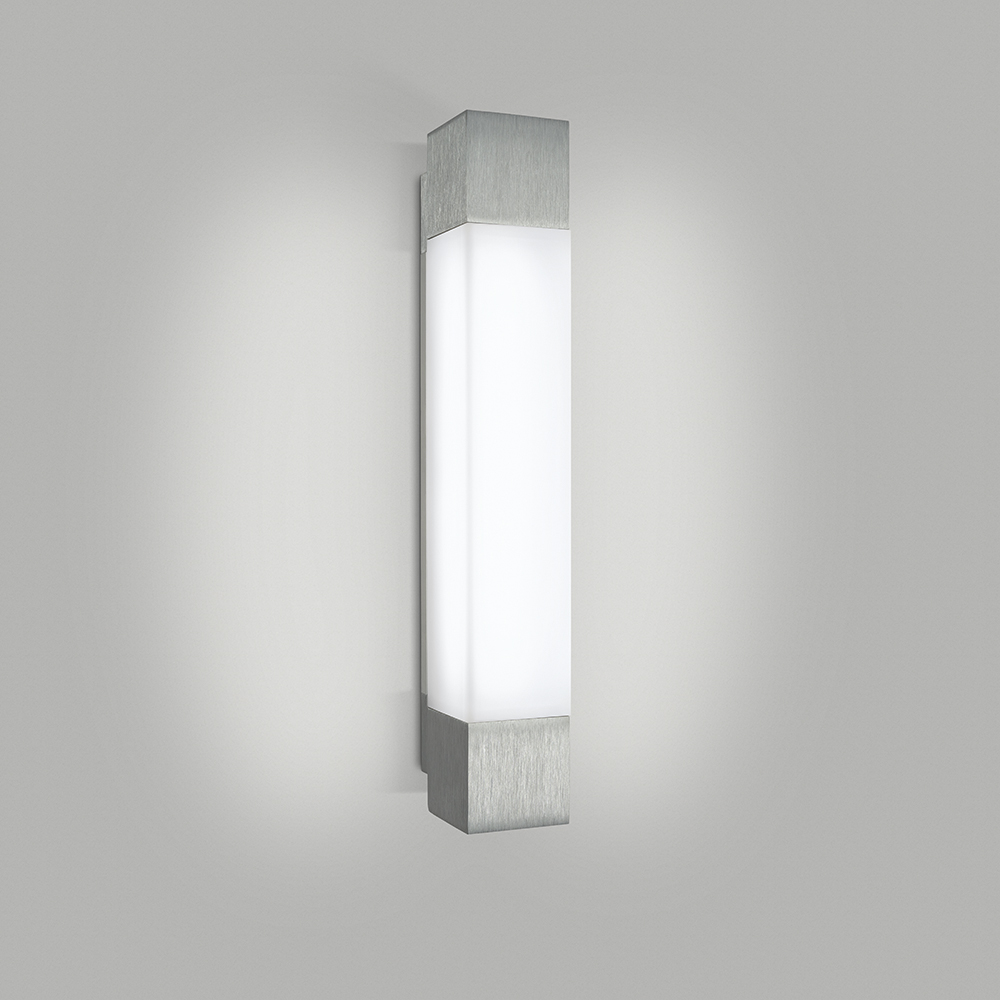

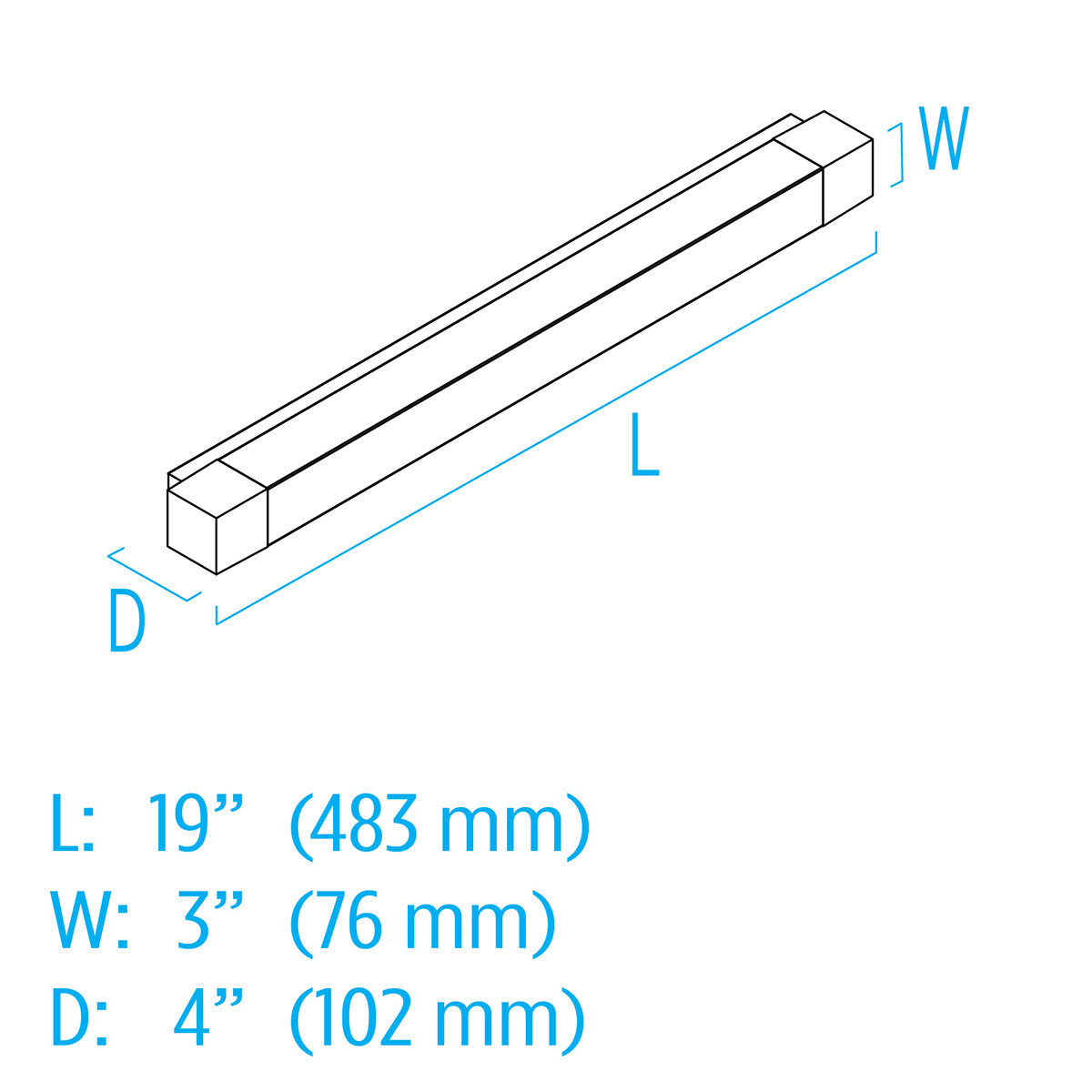

OW5524

19", Outdoor

  • L
  • W
  • D
  • 19" (483 mm)
  • 3" (76 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 1000
  • Watts
  • 11
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Wet
    IP55
    ADA

View the SHINE Application Gallery

A Luminous Design

Built for outdoor or indoor applications, the Shine family offers surface lights with simple, luminous design that is modern, highly efficient, and remarkably beautiful.

View the Gallery
