INFINITY PERFORMANCE
Pendants

Let your creativity flow with our Infinity Performance pendant. This unique fixture has been cleverly designed as a stand alone pendant for feature space applications, or it can be configured with multiple fixtures to form circles, curves, or other patterns and shapes.

  • Integral LED driver
  • Modular design for replacement of LED source and driver
  • Optional 90+ CRI (delivered lumens reduced by 5%)
  • Configurable segments available to create unique shapes for general illumination and architectural expression.
  • Patented Power Art Cable™ mounting system
  • Clear prismatic top lens for ease of maintenance and preservation of optical integrity
  • Extruded aluminum side panels with architectural reveal and fabricated bottom housing
  • BAA (Buy American Act) and BABA (Build American, Buy America) compliant
MODELS:

The Infinity Performance pendant can be finished in our Non-VOC powder coat colors.

Painted
Velvet Black
Deoro Gold
Agate Grey
Alpine Green
Baja Beige
Cove Blue
Glacier White
Harbor Grey
Jet Black
Ocean Blue
Sagebrush Green
Shoreline Grey
Slate Grey
Sierra Taupe
Terracotta Canyon
Traffic White
Vineyard Red
Blade Silver
Graphite Silver
Bronze
Bronze Matte
  • Custom color or material
  • Color LEDs
  • Color diffuser
  • Custom cutouts or logos in bottom detail
  • Direct downlight
  • RGB
Where to Buy? Contact a Sales Representative or Request a Quote

Product Specifications & Documents

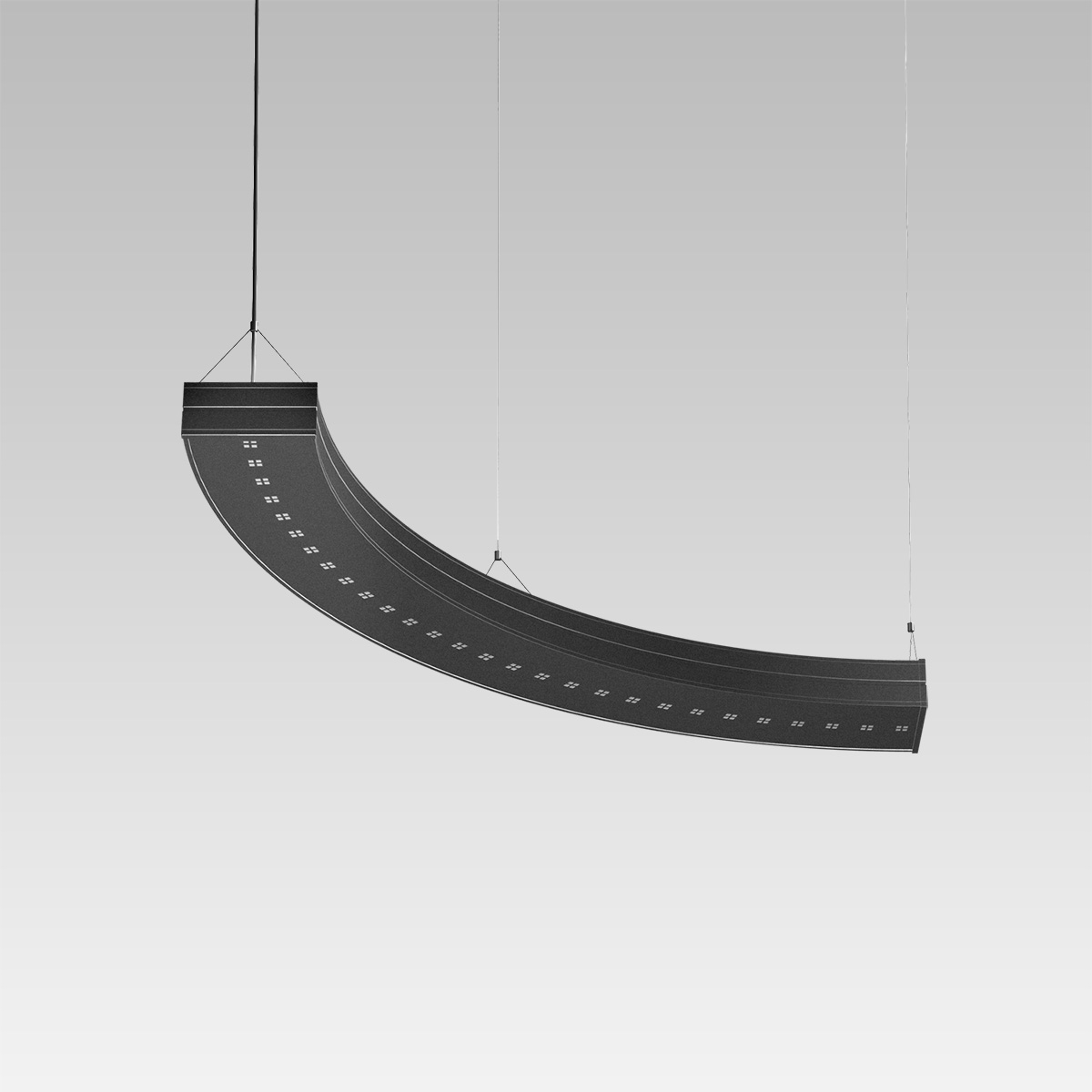

A circular indirect pendant segment
NULL NULL

CP5002

4' Arc

  • L
  • OAH
  • 68-1/4" (1734 mm)
  • 24" (610 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 5600-5800
    H: 8600-8900
  • Watts
  • L: 54
    H: 88
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Damp

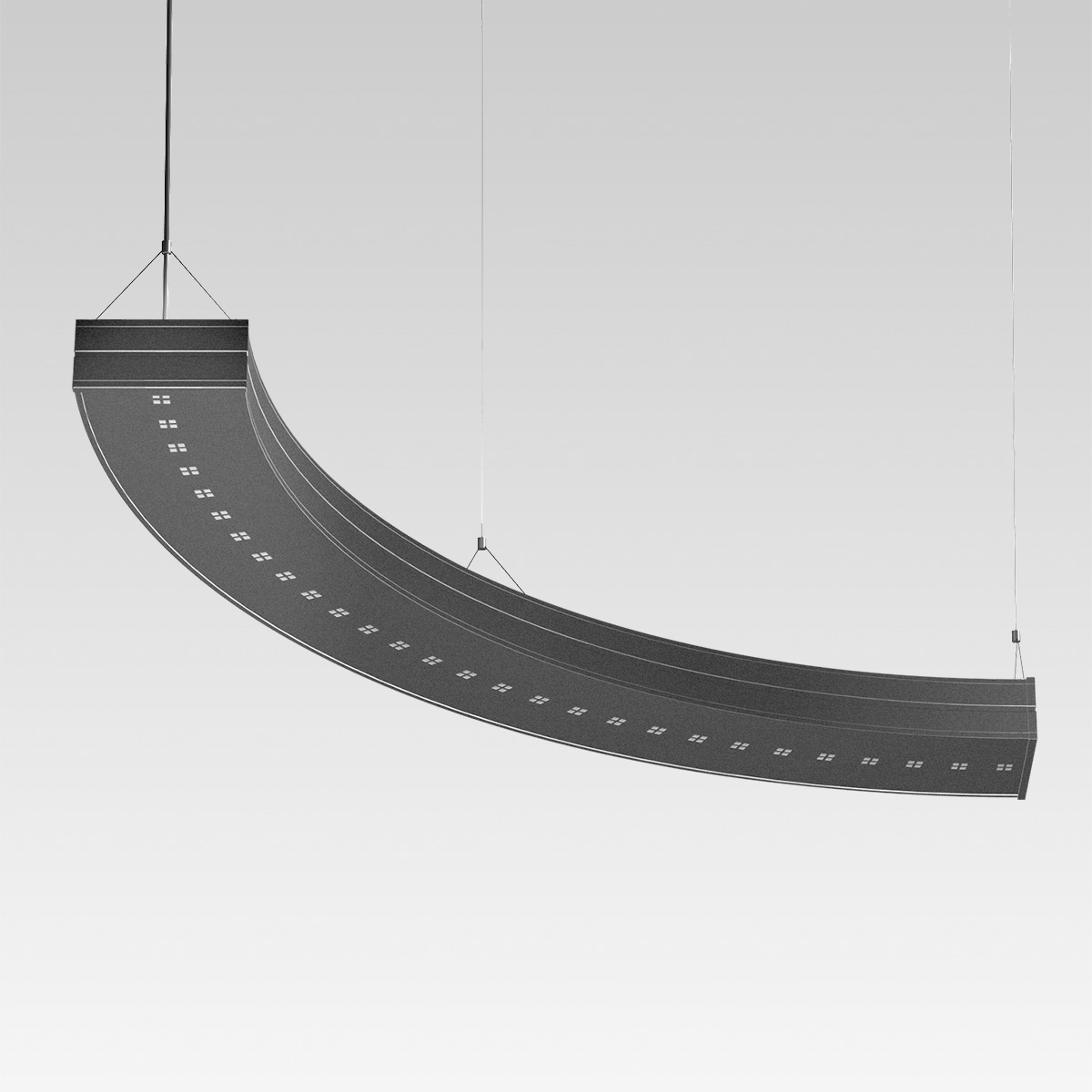

A circular indirect pendant segment
NULL NULL

CP5004

8' Arc

  • L
  • OAH
  • 73-3/4" (1873 mm)
  • 24" (610 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 5600-5800
    H: 8600-8900
  • Watts
  • L: 54
    H: 88
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Damp
A curved indirect pendant segment
NULL NULL

CP5006

10' Arc

  • L
  • OAH
  • 92-1/8" (2340 mm)
  • 24" (610 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 7100-7300
    H: 10800-11100
  • Watts
  • L: 68
    H: 108
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Damp

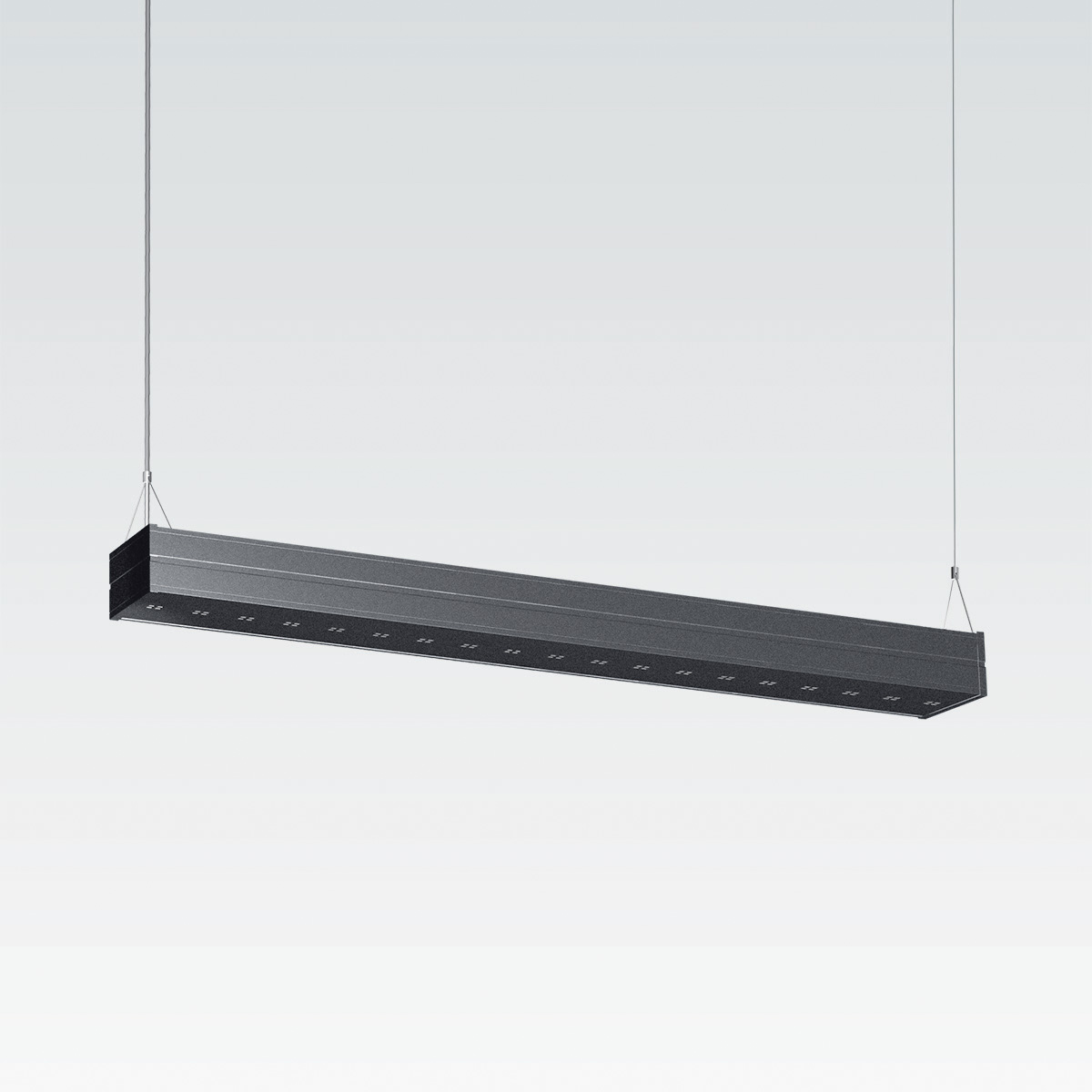

A straight indirect pendant segment
NULL NULL

CP5014

4' Straight

  • L
  • OAH
  • 48" (1219 mm)
  • 24" (610 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 3600-3700
    H: 5500-5700
  • Watts
  • L: 35
    H: 56
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Damp
A circular indirect pendant segment
NULL NULL

CP5020

8' Circle

  • DIA
  • OAH
  • 96" (2438 mm)
  • 24" (610 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 22500-23200
    H: 34700-35800
  • Watts
  • L: 215
    H: 349
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Damp
A circular indirect pendant segment
NULL NULL

CP5022

16' Circle

  • DIA
  • OAH
  • 192" (4877 mm)
  • 24" (610 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 45100-46500
    H: 69500-71600
  • Watts
  • L: 430
    H: 698
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Damp
Infinity Performance | Configurable Architectural Pendant | Visa Lighting
NULL

KT5000 Series

  • L
  • OAH
  • See CP models
  • 24" (610 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • See CP models
  • Watts
  • See CP models
  • Driver
  • Integral
  • Control
  • 0-10V to 1%
  • Listings
  • Damp

Application Photos

View the versatile INFINITY PERFORMANCE pendant light. View Gallery

Prev Next
zoom Infinity Performance | Configurable Architectural Pendant | Visa Lighting

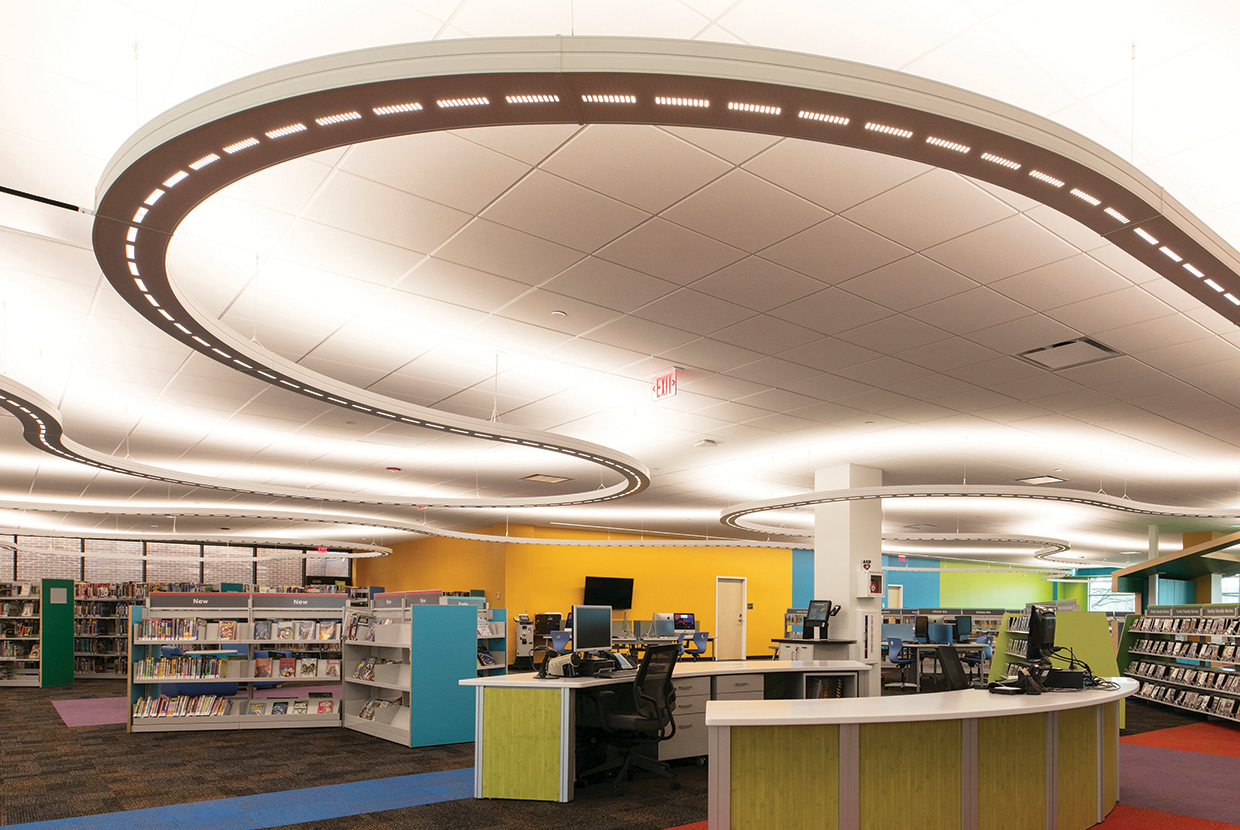

Indian Trails Public Library

INFINITY PERFORMANCE Pendant

Use for feature space applications as a standalone architectural pendant, or configure multiple fixtures to form circles, curves or other patterns. It is shown here in a configured form that illuminates the entire area. This is installed at Indian Trails Public Library in Wheeling, IL.
